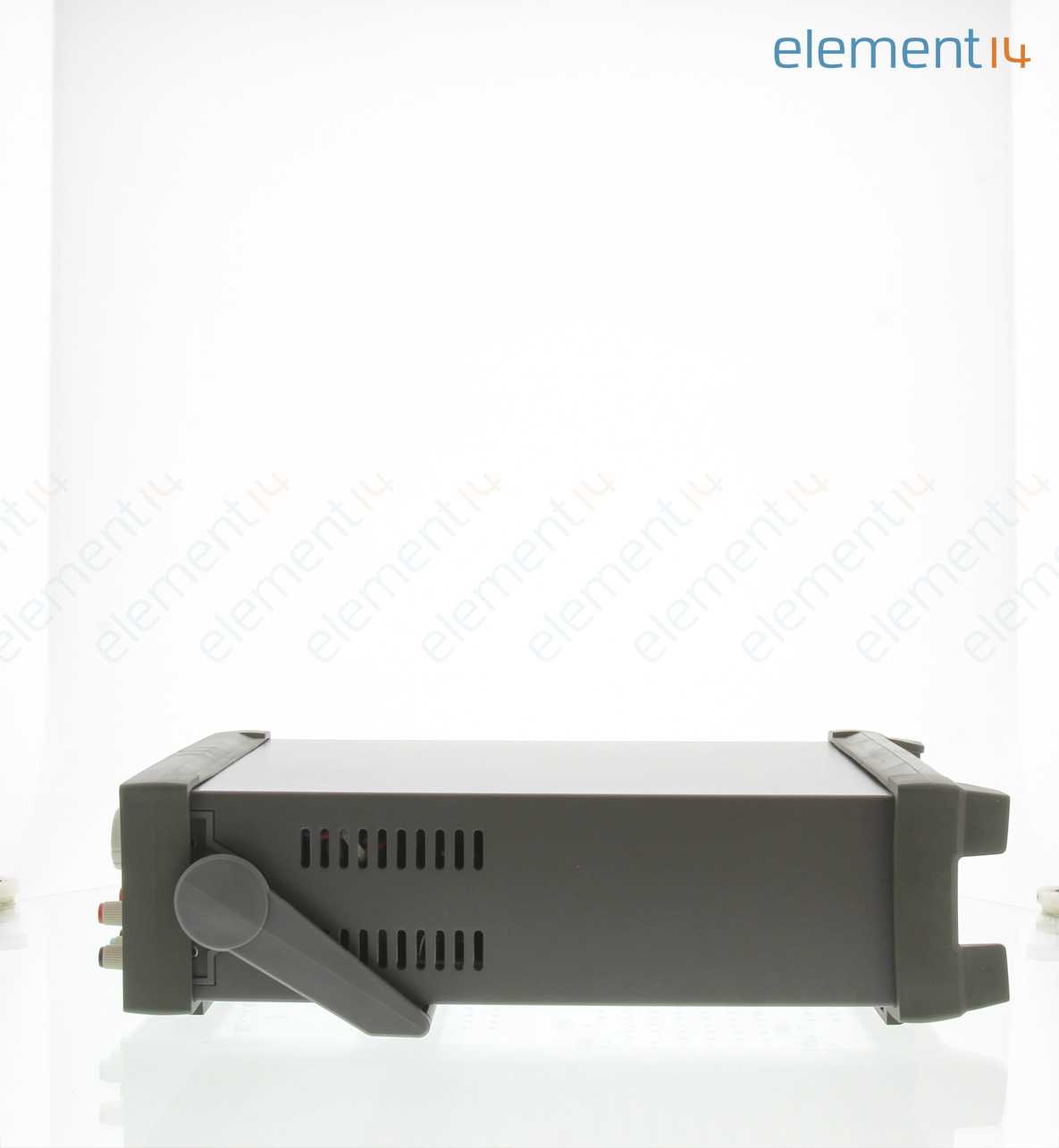

KEITHLEY 2220-30-1
台式电源, 可编程, 2输出, 0 V, 30 V, 0 A, 1.5 A
- 制造商：
- KEITHLEY KEITHLEY
- 制造商产品编号:
- 2220-30-1
- 库存编号
- 2770040
-
- 产品范围
- 2200
- 技术数据表:
- 2220-30-1 数据表
- ECAD / MCAD
-
产品范围选择器 (2200)
查看全系列相关产品产品信息
技术文档 (2)
产品概述
The 2220-30-1 from Keithley is a programmable triple channel DC power supply. It combines 3 channels of output power to cost effectively characterize and test wide range of devices, circuit boards, modules and products that require more than one power source. The model 2230-30-1 includes two 30V/1.5A channels and adds a 6V channel with up to 5A output for powering digital circuit. It has 1mV/1mA setting resolution with ±0.03% + 10mV/±0.1% + 5mA setting accuracy, 1mV/1mA meter resolution with ±0.03% + 10mV/±0.1% + 5mA meter accuracy. This multichannel power supply offers an excellent combination of performance, versatility and ease of use to maximize the information from characterization or test as quickly and as easily as possible. It complies to European union EMC directive, USA: nationally recognized testing laboratory listing UL61010-1-2004, Canada: CAN/CSA C22.2 No. 61010-1 2004. It is used in circuit design, electrical engineering student labs, materials research and automated test.
- USB interface
- All channels are independently controlled and have isolated outputs for maximum flexibility
- Accurate power delivery to the load, maximum power of 90W, 0° to +40°C operating temperature
- All channels have remote sensing to ensure that programmed voltage is accurately applied to load
- Two 30V channels can be combine in series to double output voltage or parallel to double output current
- 0.03% basic voltage output accuracy and 0.1% current accuracy ensure quality test data
- Switchable between 120VAC or 240VAC AC input, 350VA power consumption
- Voltage and current outputs for all channels are displayed simultaneously
- < 0.01% + 3mV/< 0.01% + 3mA load regulation, < 0.01% + 3mV/< 0.1% + 3mA line regulation
- 105.3mm x 241.8mm x 384.0mm (H x W x D) (protective boots and handle installed), 8.2Kg net weight
应用
电气, 自动测试设备
内容
2220-30-1 DC power supply, CS-1655-15 rear panel mating, Connector, Multi channel DC power supplies, Documentation, Driver CD.
附注
KickStart Limited Time Offer - FREE for 6 months when you purchase this item. Kickstart Software provided by Tektronix after purchase and completion of your details. Offer ends 31st December, 2023. (Not CN, IN, KR)
警告
Unauthorized use of the factory test port could damage this product.
