DM330022

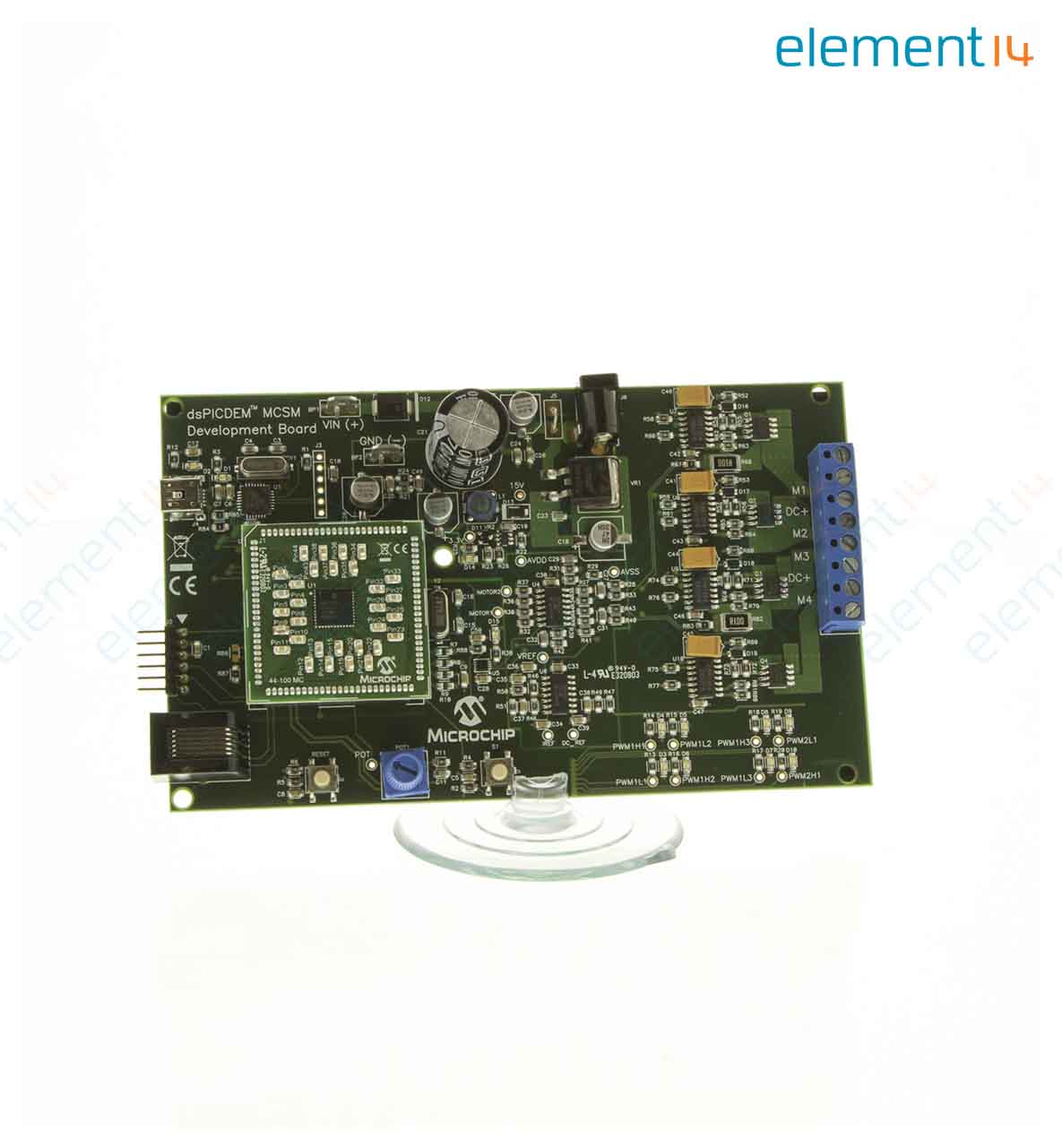

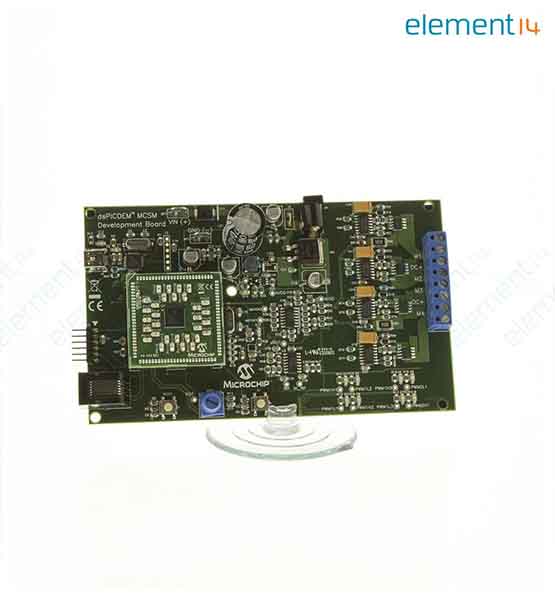

开发电路板, DSPICDEM™ MCSM, 单极性与双极性步进电机
产品概述
The DM330022是一个dsPICDEM MCSM 开发电路板 targeted to 控制both unipolar和bipolar stepper motors in open loop or close loop (current 控制) mode. The 硬件 设计in such a way that no 硬件 changes are necessary 用于8 wire, 6 wire or 4 wire stepper motors in either bipolar or unipolar 配置s. 软件to run motors in open loop or closed loop with full or variable micro stepping is provided. A GUI 用于控制ling step commands, motor parameter input,和operation modes is included. This flexible和cost effective电路板 can be configured in different ways 用于use with specialized dsPIC33F motor 控制数字信号控制器 (DSCs). The dsPICDEM MCSM 开发电路板 offers a mounting option to connect either a 28引脚SOIC设备or a generic 100 pin插入模块. A dsPIC33FJ43MC204 DSC PIM (MA330017) is included. The 开发电路板 支持 terminal voltages up to 80V和currents up to 3A.
- 运动控制接口
- 过流保护
- 两个全桥逆变器
- 内置供电电源
- 辅助电源插片式fast-on连接器
- dsPIC33FJ12MC202电机控制设备功能
- LED PWM输出指示器 全桥模式
- UART经USB 通讯
- ICSP连接器用于编程dsPIC DSC设备
应用
电机驱动与控制, 嵌入式设计与开发
内容
DsPICDEM MCSM开发电路板, dsPIC33FJ32MC204插入式模块(PIM), USB至迷你USB线缆, 螺丝刀, dsPICDEM MCSM开发电路板CD ROM, 应用说明带软件和MPLAB DMCI/RTDM GUI用于步进电机控制.
附注
仅限90天保修, 保修期到期后, 必须经过Microchip处理
警告
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
