TEXAS INSTRUMENTS LM2596T-5.0/NOPB

降压开关稳压器, 固定, 4.5V-40V输入, 5V和3A输出, TO-220-5

TEXAS INSTRUMENTS LM2596T-5.0/NOPB
×

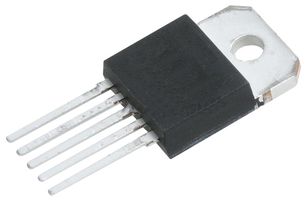

图片仅用于图解说明,详见产品说明。

制造商产品编号:
LM2596T-5.0/NOPB
库存编号
3008166
  • 在上面的文本框中输入您的自定义部件号
  • 添加的部件号数量已达到最大值。
    删除旧条目以添加更多条目。

已保存部件号

Part Number Saved

产品范围
-
ECAD / MCAD
Supply Frame Models Link

产品概述

The LM2596T-5.0 is a SIMPLE SWITCHER® low component count Step-down Regulator provides all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. This regulator is available in fixed output voltages of 5V version and requiring a minimum number of external components, this monolithic integrated circuit voltage regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2596 series operates at a switching frequency of 150kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. A standard series of inductors are available from several different manufacturers optimized for use with this regulator. This feature greatly simplifies the design of switch-mode power supplies.
  • Requires only 4 external components
  • Excellent line and load regulation specifications
  • TTL shutdown capability
  • High efficiency
  • Uses readily available standard inductors
  • Thermal shutdown and current limit protection

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
固定

:
1输出

:
降压

:
4.5V

:
40V

:
3A

:
3A

:
TO-220

:
5引脚

:
通孔安装

:
5V

:
5V

:
-

:
-

:
150kHz

:
80%

:
-40°C

:
125°C

:
-

:
-

:
-

查找类似产品 选择并修改以上属性即可查找类似产品。
