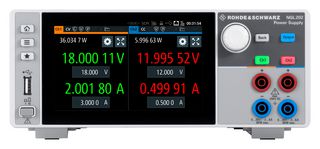

NGL-COM2B

台式电源, 可调输出, 2输出, 0 V, 20 V, 6 A

ROHDE & SCHWARZ NGL-COM2B
ROHDE & SCHWARZ NGL-COM2B
ROHDE & SCHWARZ NGL-COM2B
ROHDE & SCHWARZ NGL-COM2B
ROHDE & SCHWARZ NGL-COM2B
视频
×
×

图片仅用于图解说明,详见产品说明。

制造商产品编号:
NGL-COM2B
库存编号
3949202
产品范围
NGL200 Series
技术数据表:
NGL-COM2B   Datasheet
查看所有技术文档

产品范围选择器 (NGL200 Series)

查看全系列相关产品

产品信息

想要查看类似产品?只需在下方选择所需属性并点击按钮 ×


:
可调输出

:
2输出

:
0V

:
20V


:
6A

:
120W


:
230V

:
3年

:
NGL200 Series


查找类似产品 选择并修改以上属性即可查找类似产品。

技术文档 (5)

CAD 下载

×

条款

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

接受 取消

产品概述

NGL-COM2B is a bundle of NGL202 power supply with software options (digital trigger I/O). NGL202 is a NGL200 series high precision source and sink power supply. NGL200 power supplies are perfect for challenging applications. Their two-quadrant architecture allows them to function both as a source and a sink to simulate batteries and loads. Their short recovery times enable them to handle fast load changes that occur for example when mobile communications devices switch from sleep mode to transmit mode.
  • Fast load regulation, minimum residual ripple and low noise
  • Readings with up to 6½ digit resolution
  • TFT 5'' 800 x 480 Pixel WVGA capacitive touch screen with intuitive user interface
  • Protection functions to safeguard instrument and DUT
  • Galvanically isolated, floating channels
  • Ideal for use in labs and test systems
  • Tailored for use in labs and system racks
  • Dimension is 222mm x 97mm x 436mm, weight is 7.3Kg
  • 120W maximum output power, 0V to 20V voltage per channel, 6A maximum current per channel
  • Complete package (not including Wi-Fi option) for general purpose applications

内容

NGL202 power supply, NGL-K103 digital trigger I/O, Set of power cables, Quick start guide.
