Infineon Technologies 具有无与伦比的可靠性、多样性和系统优势的 CoolSiC™ 产品。来自 Infineon 的 SiC 技术！

作为拥有 20 多年碳化硅 (SiC) 技术开发经验的领先电力供应商，Infineon 已经为更智能、更高效的电力生产、传输和消费需求做好了准备。 Infineon 的专家深知降低系统复杂性必不可少的条件，从而降低中高功率系统的系统成本，减小尺寸。

借助于 Infineon 广泛的产品组合，满足最高质量标准、长系统寿命和可靠性得到了保证。 Infineon 拥有完整的供应链，并为 Si、GaN 和 SiC 提供不偏不倚的设计支持。与 Infineon 这家值得信赖的 SiC 供应商合作，投身变革，而这场变革与您的个人设计和系统要求无关。

超过 20 多年的现场经验使我们成为可靠的合作伙伴

单击此处放大图片

碳化硅 CoolSiC™ MOSFET 模块

英飞凌 CoolSiC™ MOSFET 功率模块系列可为逆变器设计人员带来新的机会，助力实现前所未有的效率和功率密度。碳化硅 (SiC) 半导体用作开关时，支持更高的工作温度和开关频率，从而提升整体系统效率。

我们的 CoolSiC™ 碳化硅功率模块可针对不同的应用需求进行定制。凭借从 52.9 mOhm 到 1.44 mOhm RDS 的多种拓扑结构，您可以选择与您特定需求完美契合的模块。无论您需要三电平、半桥、fourpack、sixpack 或 Boost 升压电路，我们的 1200 V和 2000 V SiC MOSFET 模块都能满足您的需求。

得益于先进的沟槽设计，1200 V 和 2000 V SiC MOSFET 模块具有卓越的栅极氧化可靠性及一流的开关和导通损耗，树立了新的性能标准。所有 EasyPACK™、EasyDUAL™ 和 62 mm CoolSiC™ MOSFET 功率模块不仅可订购预涂导热介质 (TIM) 版本，而且还可以提供具有其它特性的版本。例如，我们采用高性能氮化铝 (AlN) 陶瓷的 Easy 模块大大改善了 RthJH 散热性能。

为下一代高性能系统赋能

了解新型 CoolSiC™ MOSFET G2 沟槽式 MOSFET 如何让 SiC 的性能更上一层楼，同时满足所有常见电源方案组合（交流-直流、直流-直流和直流-交流）的最高质量标准。与同类型的 Si 产品相比，SiC MOSFET 在光伏逆变器、储能系统、电动汽车充电、电源、电机驱动器等众多案例中都能提供更出色的性能。

特色：

400 V / 650 V / 1200 V CoolSiC MOSFET G2
最低可提供的 RDS(on)
最大规模的产品组合
独特的耐用特性

让 CoolSiC™ 成为您的应用的一部分

CoolSiC™ - 客户成功案例

冷分流技术

CoolSiC™ - 沟槽技术 - 值得您信赖的技术变革

CoolSiC™ - 伺服驱动的完美解决方案

CoolSiC™ MOSFET 在伺服驱动中的应用

微学习：CoolSiC™ MOSFET 在电动汽车充电中的应用

特色产品

Infineon 的 CoolSiC™ 产品类别：找到最适合您的产品

我们不断地在现有的 Si 类产品基础上增加基于 SiC 的产品，包括采用沟槽技术的革命性的 CoolSiC™ MOSFET。如今，该公司提供业内最全面的电力产品组合之一（从超低压到高压电力设备均有）。除了确保提供最适合的解决方案之外，我们还进一步优化了基于 SiC 的产品，以满足特定的应用要求。鉴于利用隔离式栅极输出部分可以更轻松地处理超快开关功率晶体管（如 CoolSiC™ MOSFET），我们为客户提供了基于我们的无芯变压器技术的完美匹配型电气隔离 EiceDRIVER™ 栅极驱动器 IC。我们这些年来，生产了数百万个混合模块（快速硅基开关与 CoolSiC™ 肖特基二极管的组合），积累了大量的专业知识和能力，并进一步为我们的技术领先地位做出了贡献。

CoolSiC™ MOSFETs - MODULES

Part number	Specification	Package	Applications
FS55MR12W1M1H_B11	Sixpack 1200 V CoolSiC™ MOSFET Easy Module Buy now	AG-EASY1B	Automotive EV charging General purpose motor drive - variating frequency and voltage Photovoltaic Refrigeration and freezing
FS33MR12W1M1H_B11	CoolSiC™ MOSFET sixpack module 1200 V Buy now	AG-EASY1B	EV charging Industrial motor drives and controls Servo motor drive and control
F3L11MR12W2M1HP_B19	CoolSiC™ MOSFET 3-level module 1200 V Buy now	AG-EASY2B	Energy Storage Systems EV charging Photovoltaic Uninterruptible power supplies (UPS)
FF2MR12W3M1H_B11	Half-bridge 1200 V CoolSiC™ MOSFET Easy Module Buy now	AG-EASY3B	Energy Storage Systems Commercial, construction and agricultural vehicles (CAV) Medium voltage (MV) drive Offline UPS - high frequency transformers Photovoltaic
F4-11MR12W2M1HP_B76	CoolSiC™ MOSFET fourpack module 1200 V Buy now	AG-EASY2B	Energy Storage Systems EV charging Photovoltaic Uninterruptible power supplies (UPS)
FF1MR12KM1H	CoolSiC™ MOSFET half bridge module 1200 V Buy now	AG-62MMHB	Energy Storage Systems EV charging Photovoltaic Uninterruptible power supplies (UPS)
FF2MR12KM1H	CoolSiC™ MOSFET half bridge module 1200 V Buy now	AG-62MMHB
FF6MR12KM1H	Half-bridge 1200 V CoolSiC™ MOSFET Module Buy now	AG-62MMHB
FF3MR20KM1H	CoolSiC™ MOSFET half bridge module 2000 V Buy now	AG-62MMHB	Energy Storage Systems EV charging Photovoltaic Traction Uninterruptible power supplies (UPS)
FF4MR20KM1H	CoolSiC™ MOSFET half bridge module 2000 V Buy now	AG-62MMHB

CoolSiC™ MOSFETs – DISCRETES

Part number	Specification	Package	Applications
IMT65R022M1H	CoolSiC™ 650 V, 27 mΩ SiC-based trench MOSFET Buy now	PG-HSOF-8	Datacenter Power Telecom power Solar Inverters Energy storage systems Battery formation Industrial SMPS Motor drives Online UPS
IMT65R030M1H	CoolSiC™ MOSFET discrete 650 V in TOLL package Buy now	PG-HSOF-8
IMT65R057M1H	CoolSiC™ MOSFET discrete 650 V in TOLL package Buy now	PG-HSOF-8
AIMBG75R016M1HXTMA1	The CoolSiC™ MOSFET 750 V is a highly robust SiC MOSFET for the best system performance and reliability. Buy now	PG-TO263-7	Solar energy systems EV charging Power management (Industrial SMPS and UPS) Motor control and drives
AIMDQ75R016M1HXUMA1	The CoolSiC™ MOSFET 750 V is a highly robust SiC MOSFET for the best system performance and reliability. Buy now	PG-HDSOP-22
IMZ120R060M1H	CoolSiC™ 1200V SiC Trench MOSFET in TO247-4 package Buy now	PG-TO247-4		1-phase string inverter solutions Automotive DIN rail power supplies EV charging Photovoltaic
IMBG120R053M2H	CoolSiC™ MOSFET 1200 V G2 in TO-263-7 package Buy now	PG-TO-263-7	EV charging Industrial motor drives and controls Photovoltaic Uninterruptible power supplies (UPS)
IMYH200R024M1H	CoolSiC™ 2000 V SiC Trench MOSFET Buy now	PG-TO-247PLUS-4-HCC	Energy Storage Systems EV charging Photovoltaic
IMW120R030M1H	CoolSiC™ 1200V SiC Trench MOSFET Buy now	PG-TO247-3	1-phase string inverter solutions EV charging Government identification Photovoltaic Uninterruptible power supplies (UPS)
IMBF170R1K0M1	CoolSiC™ 1700 V SiC Trench MOSFET Buy now	PG-TO-263-7	1-phase string inverter solutions EV charging General purpose motor drive - variating frequency and voltage Industrial motor drives and controls On-board battery charger (OBC) for electric vehicles

EiceDRIVER™ SiC MOSFET Gate Driver ICs

Part number	Specification	Package	Applications
1ED3321MC12N	2300 V single-channel isolated gate driver with short-circuit protection, active Miller clamp and soft-off, UL 1577 & VDE 0884-11 certified Buy now	PG-DSO-16	1-phase string inverter solutions EV charging General purpose motor drive - variating frequency and voltage Industrial motor drives and controls Photovoltaic
1ED3142MU12F	6.5 A, 3 kV (rms) single-channel isolated gate driver with separate output, UL 1577 certified, 13.6 V UVLO Buy now	PG-DSO-8	1-phase string inverter solutions 48 V power distribution DIN rail power supplies Edge server solutions EV charging
1ED3125MU12F	10 A, 3.0 kV (rms) single-channel isolated gate driver with active Miller clamp, UL 1577 certified, 10.5 V UVLO Buy now	PG-DSO-8
2EDS9265H	Fast, robust, dual-channel, reinforced isolated MOSFET gate driver with accurate and stable timing Buy now	PG-DSO-16	Automotive Trusted semiconductor solutions for light electric Potential applications: vehicles (LEV) Industrial SMPS Telecom DC-DC Server UPS Battery EV-charging Smart grid
2EDF9275F	Fast, robust, dual-channel, functional isolated MOSFET gate driver with accurate and stable timing Buy now	PG-DSO-16	Applications: 48 V power distribution Complete system solutions for smart TVs Servo motor drive and control Telecommunication infrastructure Potential applications: Industrial SMPS Telecom DC-DC Server UPS Battery EV-charging Smart grid

CoolSiC™ MOSFET – DISCRETE

Part number	Specification	Package	Applications
AIKBE50N65RF5ATMA1	Automotive Silicon-carbide (SiC) Hybrid Discrete 650 V in D2PAK-7L Buy now	PG-TO263-7	Potential applications: On-board charger DC/DC converter
AIMBG120R040M1XTMA1	Automotive 1200V Silicon-carbid (SiC) Trench Power MOSFET in D2PAK-7L, 40mΩ Buy now	PG-TO263-7	On-board Charger DC-DC Converter eFuse Battery Disconnection
AIMBG120R080M1XTMA1	Automotive 1200V Silicon-carbid (SiC) Trench Power MOSFET in D2PAK-7L, 80mΩ Buy now	PG-TO263-7	Applications Commercial, construction and agricultural vehicles (CAV) Electric vehicle (EV) drivetrain system High-voltage DC-DC converter for electric vehicles High Voltage E-Compressor On-board battery charger (OBC) for electric vehicles Potential Applications On-board Charger DC-DC Converter eFuse Battery Disconnection
AIMZH120R010M1TXKSA1	Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L (thin leads), 8.7mΩ Buy now	PG-TO247-4	Potential Applications On-board charger DC/DC converter Auxiliary drives
AIMZH120R020M1TXKSA1	Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L (thin leads), 20mΩ Buy now	PG-TO247-4
AIMZH120R030M1TXKSA1	Automotive 1200V Silicon-carbid (SiC) Trench Power MOSFET in TO247-4L (thin leads), 30mΩ Buy now	PG-TO247-4
AIMZH120R040M1TXKSA1	Automotive 1200V Silicon-carbid (SiC) Trench Power MOSFET in TO247-4L (thin leads), 40mΩ Buy now	PG-TO247-4	Potential Applications On-board charger DC/DC converter Auxiliary drives
AIMZH120R060M1TXKSA1	Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L (thin leads), 60mΩ Buy now	PG-TO247-4
AIMZH120R080M1TXKSA1	Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L (thin leads), 80mΩ Buy now	PG-TO247-4
AIMZH120R120M1TXKSA1	Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L (thin leads), 120mΩ Buy now	PG-TO247-4	Potential applications: On-board charger DC/DC converter Auxiliary drives
AIMZH120R160M1TXKSA1	Automotive 1200V Silicon-carbide (SiC) Trench Power MOSFET in TO247-4L (thin leads), 160mΩ Buy now	PG-TO247-4	Potential applications: On-board charger DC/DC converter Auxiliary drives
FS05MR12A6MA1BBPSA1	This HybridPACK™ Drive is a very compact six-pack module (1200V/200A) optimized for hybrid and electric vehicles. Buy now	AG-HDG1-3211	Potential Applications Main inverter Automotive Applications Hybrid Electrical Vehicles (H)EV Motor Drives Commercial Agriculture Vehicles
FS03MR12A6MA1BBPSA1	This HybridPACK™ Drive is a very compact six-pack module (1200V/400A) optimized for hybrid and electric vehicles. Buy now	AG-HDG1-3211	Applications EV traction inverter Secondary Power Distribution Centers Small 1-cylinder combustion engine solution Traction Transfer case brushless DC Potential Applications Automotive Applications Hybrid Electrical Vehides (H)EV Motor Drives Commercial Agriculture Vehicles Main inverter
FF08MR12W1MA1B11ABPSA1	EasyPACK™ CoolSiC™ Automotive MOSFET 1200V Half Bridge Module Buy now	AG-EASY1BA-3211	Automotive Diesel direct injection High-voltage DC-DC converter for electric vehicles Secondary Power Distribution Centers Switched mode power supplies (SMPS)

Part number	Description	Target applications	Key features and benefits

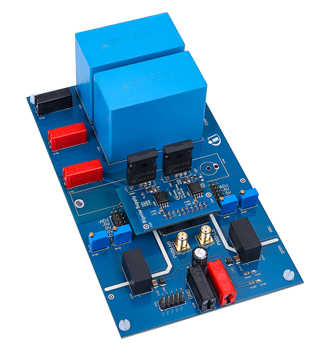

Mother board: EVAL_PS_SIC_DP_MAIN	EVAL_PS_SIC_DP_MAIN CoolSiC™ MOSFET 1200 V in TO-247 3-/4-pin evaluation platform (mother board) User Guide Buy now	Solutions for solar energy systems, EV charging, UPS, power supplies, motor control and drives	Features: Best-in-class switching and conduction losses Benchmark high threshold voltage, V_th > 4 V 0 V turn-off gate voltage for easy and simple gate drive Wide gate-source voltage range Robust and low loss body diode rated for hard commutation Temperature independent turn-off switching losses Benefits: Highest efficiency Reduced cooling effort Higher frequency operation Increased power density Reduced system complexity

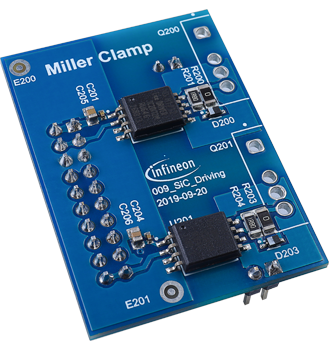

Daughter board: REF_PS_SIC_DP1	REF_PS_SIC_DP1 Miller clamp function board for EVAL_PS_SIC_DP_MAIN (daughter board / drive card) Buy now

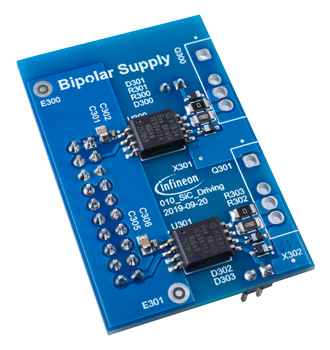

Daughter board: REF_PS_SIC_DP2	REF_PS_SIC_DP2 Bipolar supply function board for EVAL_PS_SIC_DP_MAIN (daughter board / drive card) Buy now
EVAL-COOLSIC-2KVHCC	Evaluation Board as adaptable double pulse tester for 2000 V discrete CoolSiC™ MOSFETs in TO-247-4-PLUS-HCC package with compact single channel isolated gate driver EiceDRIVER™ 1ED3124MU12H1200 Buy now	Industrial	Features: Double pulse or continuous PWM operation Withstands up to 1500 V_DC Compatible with TO-247PLUS-4-HCC and TO-247-2 packages Adjustable gate voltage level Supports external XMC4400 controller,KIT_XMC4400_DC_V1 Space reservation for DC-link snubber evaluation EiceDRIVER™ Compact single channel isolated gate driver 1ED3124MU12H Benefits: Flexible universal design Accurate test platform for high voltage discretes High power density Supports different operation modes
EVAL_3K3W_TP_PFC_SIC	3300 W CCM bidirectional totem-pole PFC unit using CoolSiC™ 650 V, 600 V CoolMOS™ C7, and digital control via XMC™ microcontroller Application note 3D model Buy now	High-end server, datacenter, telecom	Features: High-efficiency bridgeless totem-pole PFC Enabled by CoolSiC™ trench MOSFET 650 V Digitally controlled via XMC1404 Bidirectional capability (DC-AC operation) Benefits: Efficiency close to 99% High power density Compact form factor (72 W/in³) Low component count Bidirectional operation (digital control)
