3M N3408-6302RB

Pin Header, Long Latch, Wire-to-Board, 2.54 mm, 2 Rows, 16 Contacts, Through Hole Straight, 3000

3M N3408-6302RB
3M N3408-6302RB
3M N3408-6302RB
3M N3408-6302RB
×

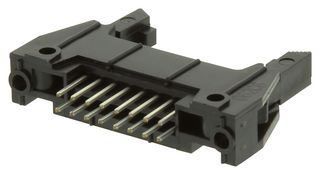

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
3M 3M
Manufacturer Part No:
N3408-6302RB
Order Code:
9838112
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
3000
Also Known As:
7100251533
Technical Datasheet:
N3408-6302RB   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (3000)

See all from this product range

Product Overview

The N3408-6302RB is a 16-way 0.100 x 0.100-inch Pak 100 4-wall Straight Header with long roll pin latch/ejector, gold-plated copper alloy contacts and through hole termination. This 3000 series header is glass filled polyester (PCT) insulated, suitable for reflow soldering using paste in hole techniques. This has military (with 3M's 3518 polarizing key) and centerbump polarization, mounting holes for securing header to board.
  • Black colour
  • UL94V-0 Flammability rating
  • 1A Current rating
  • >1 x 10⁹R at 500VDC Insulation resistance
  • -55 to 105°C Temperature rating

Applications

Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Wire-to-Board

:
2.54mm

:
2Rows

:
16Contacts

:
Through Hole Straight

:
3000

:
Shrouded

:
Copper Alloy

:
Gold Plated Contacts

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

Also Known As

7100251533
