MS32 20010

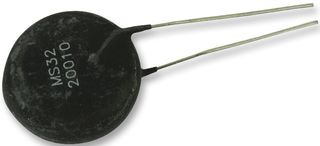

Thermistor, ICL NTC, 20 ohm, -25% to +25%, Radial Leaded, MegaSurge MS32 Series
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMETHERM
Manufacturer Part NoMS32 20010
Order Code2113023
Product RangeMegaSurge MS32
Technical Datasheet
217 In Stock
Need more?
217 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY37.700 (CNY42.601) |
| 2+ | CNY37.410 (CNY42.2733) |
| 3+ | CNY37.110 (CNY41.9343) |
| 5+ | CNY36.820 (CNY41.6066) |
| 10+ | CNY36.520 (CNY41.2676) |
| 20+ | CNY33.000 (CNY37.290) |
| 50+ | CNY30.780 (CNY34.7814) |
Price for:Each
Minimum: 1
Multiple: 1
CNY37.70 (CNY42.60 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMETHERM
Manufacturer Part NoMS32 20010
Order Code2113023
Product RangeMegaSurge MS32
Technical Datasheet
Product RangeMegaSurge MS32
Disc Size32mm
Resistance (25°C)20ohm
ApprovalsUL
Maximum Energy Rating at 25°C250J
Maximum Steady State Current at 25°C10A
SVHCNo SVHC (27-Jun-2024)
Product Overview
The MS32 20010 is a 2-pin NTC Thermistor provides a simple one-component alternative to using wire wound resistors with timers and relays. This MegaSurge MS32 series inrush current limiter thermistor has the ability to withstand high steady-state currents to 36A and up to 300J of input energy. In addition, they increase safety by eliminating the fire hazard associated with failed relays. Ideal for inrush current protection.
- 194s Thermal time constant
- 45.4mW/°C Dissipation constant
Applications
Safety, Power Management, Motor Drive & Control, Audio, Test & Measurement, Maintenance & Repair
Technical Specifications
Product Range
MegaSurge MS32
Resistance (25°C)
20ohm
Maximum Energy Rating at 25°C
250J
SVHC
No SVHC (27-Jun-2024)
Disc Size
32mm
Approvals
UL
Maximum Steady State Current at 25°C
10A
