175362-1
Connector Housing, Dynamic D-3500D, Receptacle, 2 Ways, 5.08 mm

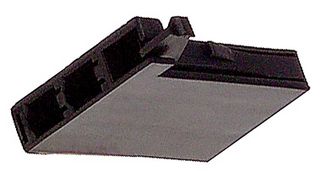

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No175362-1
Order Code2452656
Product RangeDynamic D-3500D
Technical Datasheet
29,776 In Stock
Need more?
18350 Delivery in 3-4 Business Days(Shanghai stock)
11426 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 10+ | CNY5.610 (CNY6.3393) |
| 3200+ | CNY5.490 (CNY6.2037) |
Price for:Each
Minimum: 10
Multiple: 10
CNY56.10 (CNY63.39 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No175362-1
Order Code2452656
Product RangeDynamic D-3500D
Technical Datasheet
Product RangeDynamic D-3500D
Connector MountingCable Mount
No. of Positions2Ways
Pitch Spacing5.08mm
For Use WithAMP Dynamic D-3500D Series Socket Contacts
Connector Body MaterialPET (Polyester), Glass Filled Body
Locking TypeLatch
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 175362-1 is a 2-way 1-row black Receptacle Housing made of polyester GF. It is ideal for use with D3000 series plug housing and header.
- UL94V-0 Flammability rating
- In-line contact layout
- 9.8N Insertion force
- 600VAC (600VDC) Operating voltage
- -55 to 105°C Operating temperature range
Applications
Industrial
Technical Specifications
Product Range
Dynamic D-3500D
Connector Mounting
Cable Mount
Pitch Spacing
5.08mm
Connector Body Material
PET (Polyester), Glass Filled Body
SVHC
No SVHC (21-Jan-2025)
Gender
Receptacle
No. of Positions
2Ways
For Use With
AMP Dynamic D-3500D Series Socket Contacts
Locking Type
Latch
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001134
