Need more?
Quantity | Price (inc GST) |
---|---|
1+ | CNY12.860 (CNY14.5318) |
10+ | CNY10.990 (CNY12.4187) |
25+ | CNY10.320 (CNY11.6616) |
50+ | CNY9.790 (CNY11.0627) |
100+ | CNY9.340 (CNY10.5542) |
250+ | CNY8.750 (CNY9.8875) |
500+ | CNY8.370 (CNY9.4581) |
Product Information
Product Overview

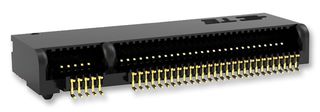

The M.2 (NGFF) series M.2 Connector supports multiple function add-in cards and modules including WiFi, Bluetooth, global navigation satellite systems, near field communication, hybrid digital radio, wireless gigabit alliance (WiGig), wireless wide area network and solid-state storage devices. It also adds functionality to PCIe Gen 3, SATA 3, SATA I/O and USB 3.0. The new, smaller form factor is suitable for applications in new thin platforms. The M.2 next generation form factor (NGFF) product line is a natural transition from the mini card and half mini card to a smaller form factor in both size and volume.
- Available in various heights
- Designed for both single and double-sided modules
- Available in various keying options for module cards
- Support PCI Express 3.0, USB 3.0 and SATA 3.0
- Save more than 20% PCB real estate compare to PCIe mini card
- Reduces connector height by 15%
- Ensures proper mating with various modules cards
- Supports higher data rate
Applications
Wireless, Computers & Computer Peripherals, Communications & Networking, Portable Devices, Consumer Electronics
Technical Specifications
Dual Side
67 Contacts
Right Angle
Copper Alloy
Thermoplastic Body
No SVHC (21-Jan-2025)
-
Surface Mount
Solder
15µ" Gold Plated Contacts
M.2 (NGFF)
Technical Docs (3)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
