46673
Crimp Tool, Ratchet, AMP STRATO-THERM Series 22-14AWG Terminals & Splices
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY14,361.570 (CNY16,228.5741) |
Product Information
Product Overview

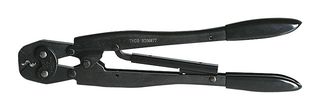

The 46673 is a Hand Crimping Tool suitable for use with the STRATO-THERM* terminals. It is used to crimp high temperature and heat-resistant STRATO-THERM terminals and splices onto wire sizes 22 through 14AWG. The hand tool features an indenter crimping jaw and an anvil crimping jaw, locator, two insulation crimping adjustment pins and a CERTI-CRIMP hand tool ratchet. The hand tool has the wire size marked on the BACK side of the tool. The locator positions the terminal or splice between the crimping jaws. The insulation crimping adjustment pins are used to regulate the crimp height of the insulation barrel sleeve. The hand tool ratchet assures full crimping of the terminal. Once engaged the ratchet will not release until the tool handles have been FULLY closed.
Applications
Maintenance & Repair
Technical Specifications
Ratchet
-
AMP STRATO-THERM Series 22-14AWG Terminals & Splices
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Product Compliance Certificate
