53073

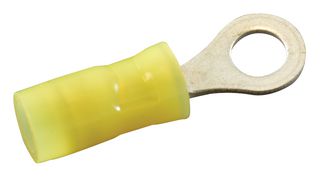

Ring Tongue Terminal, M3.5, #6, 24 AWG, 0.26 mm², PIDG, Yellow
Image is for illustrative purposes only. Please refer to product description.
889 In Stock
2,000 more incoming. You can reserve stock now
889 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY6.560 (CNY7.4128) |
| 10+ | CNY5.320 (CNY6.0116) |
| 25+ | CNY5.110 (CNY5.7743) |
| 50+ | CNY4.960 (CNY5.6048) |
| 100+ | CNY4.830 (CNY5.4579) |
| 250+ | CNY4.440 (CNY5.0172) |
| 500+ | CNY4.240 (CNY4.7912) |
Price for:Each
Minimum: 1
Multiple: 1
CNY6.56 (CNY7.41 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No53073
Order Code2579869
Product RangePIDG
Stud Size - MetricM3.5
Stud Size - Imperial#6
Wire Size AWG Max24AWG
Conductor Area CSA0.26mm²
Product RangePIDG
Insulator ColourYellow
Insulator MaterialNylon (Polyamide)
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 53073 is a Ring Tongue Terminal made of copper with tin plated finish. The PIDG series crimp terminal comes with a yellow nylon insulated standard closed sleeve barrel, straight terminal angle and terminal orientation. It accepts 26 to 24AWG regular wire. It must be crimped with a 22-18 or 22-16 PIDG (red) tool.
- RING-041 shape
- 300V Maximum rated voltage
Technical Specifications
Stud Size - Metric
M3.5
Wire Size AWG Max
24AWG
Product Range
PIDG
Insulator Material
Nylon (Polyamide)
Stud Size - Imperial
#6
Conductor Area CSA
0.26mm²
Insulator Colour
Yellow
SVHC
No SVHC (25-Jun-2025)
Technical Docs (3)
Alternatives for 53073
7 Products Found
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000681
