97-3101A-14S-6P
CIRCULAR, RECEPTACLE, 14S-6, CABLE
Notify me when back in stock
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY198.290 (CNY224.0677) |
| 10+ | CNY168.480 (CNY190.3824) |
| 25+ | CNY157.900 (CNY178.427) |
| 50+ | CNY156.310 (CNY176.6303) |
Product Information
Product Overview

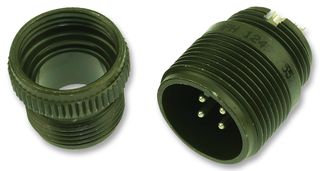

The 97-3101A-14S-6P is a 6-contact Circular Connector, 97 series, cable receptacle, 14S-6 insert arrangement, solid backshell and pin contact. Connector component is fabricated from high grade aluminium alloy, with a conductive cadmium-plated finish and an olive drab chromate after-treatment. Contact is silver plating with pre-tinned solder cups. Inserts for solder style contacts are diallyl-phthalate. Solid shell construction is strong and conserves space. Includes integral polarizing key in front shell. Machined back shell is threaded for standard MS/AN fittings. Can be unscrewed for inspection or soldering.
- Medium to heavy weight cylindrical
- Durable and field-proven design
- Single key/keyway polarization
- Threaded coupling, hard dielectric inserts
- Non-rotating contacts
Applications
Automotive, Robotics, Maintenance & Repair, Commercial, Medical, Automation & Process Control, Sensing & Instrumentation, Aerospace, Defence, Military
Technical Specifications
MIL-DTL-5015 Series
Solder Pin
14S-6
Brass, Copper Alloy
N
Cable Mount Receptacle
Threaded
Aluminium Alloy Body
Silver
General Duty
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
