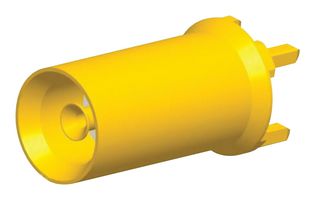

920-266J-51P
RF / Coaxial Connector, AFI Coaxial, Straight Jack, Through Hole Vertical, 50 ohm
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY65.510 (CNY74.0263) |
| 10+ | CNY64.320 (CNY72.6816) |
| 25+ | CNY59.230 (CNY66.9299) |
| 50+ | CNY56.790 (CNY64.1727) |
| 100+ | CNY50.510 (CNY57.0763) |
| 250+ | CNY45.280 (CNY51.1664) |
| 500+ | CNY43.630 (CNY49.3019) |
| 1000+ | CNY43.230 (CNY48.8499) |
Product Information
Product Overview
Amphenol RF introduces the AFI connector interface as a solution for blind mate board-to-board RF applications, especially for the military and broadband marketplaces. The AFI interface utilizes a proprietary configuration that allows for industry leading “float” to compensate for the axial and radial misalignment due to packaging tolerances. This industry-leading float results in a maximum misalignment allowed by the system of .030” [0,8 mm] radial and .040” [1,0 mm] axial. The interface is available in both 75 Ohm and 50 Ohm configurations.
- Power handling: 95W
- 100 mating cycles
- Operating temperature: -65°C to +165°C
Applications
RF Communications, Signal Processing, Communications & Networking, Industrial, Telecommunications
Technical Specifications
AFI Coaxial
Through Hole Vertical
-
Gold Plated Contacts
PCB Mount
Lead (21-Jan-2025)
Straight Jack
50ohm
Beryllium Copper
6GHz
AFI
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:China
