MAX25606EVSYS#
Evaluation Board, MAX25606, MAX25601, 1 Output, Boost-Buck, PWM
Image is for illustrative purposes only. Please refer to product description.
3 In Stock
Need more?
3 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY1,009.820 (CNY1,141.0966) |
Price for:Each
Minimum: 1
Multiple: 1
CNY1,009.82 (CNY1,141.10 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerANALOG DEVICES
Manufacturer Part NoMAX25606EVSYS#
Order Code3772600
Technical Datasheet
Device TopologyBuck-Boost
No. of Outputs1Outputs
Output Current-
Output Voltage-
Input Voltage Min-
Input Voltage Max-
Core ChipMAX25606, MAX25601
Dimming Control TypePWM
Kit ContentsEvaluation Kit MAX25606, MAX25601
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview

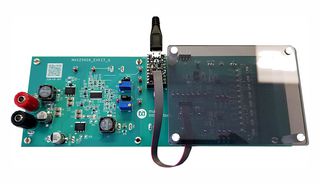

MAX25606 evaluation system (EV system) provides a proven design to evaluate the MAX25606 six-channel LED matrix manager. The EV system includes two instances of the MAX25606 controlling twelve on-board LEDs connected in a series configuration. The MAX25601 Boost-buck LED driver is also included to drive the LEDs.
- 12 on-board white LEDs
- MAX25601 boost-buck LED driver
- MAX32625PICO# provides UART communication to control the matrix managers
- GUI for easy evaluation
