M22520/2-01
Crimp Tool, 32AWG-18AWG, Ratchet, Astro Tool MotionGrade M23 & M40 Series 32-20AWG Contacts

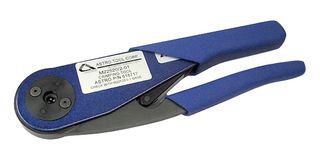

Image is for illustrative purposes only. Please refer to product description.
ManufacturerASTRO TOOL
Manufacturer Part NoM22520/2-01
Order Code4259967
Your Part Number
Technical Datasheet
9 In Stock
Need more?
9 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY6,778.290 (CNY7,659.4677) |
| 5+ | CNY6,473.610 (CNY7,315.1793) |
| 10+ | CNY5,964.380 (CNY6,739.7494) |
Price for:Each
Minimum: 1
Multiple: 1
CNY6,778.29 (CNY7,659.47 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerASTRO TOOL
Manufacturer Part NoM22520/2-01
Order Code4259967
Technical Datasheet
Crimp Tool TypeRatchet
Product Range-
SVHCNo SVHC (21-Jan-2025)
Product Overview
M22520/2-01 is a crimping tool direct equivalent to AFM8. It is a crimp tool designed for machined pin and socket contacts with wire barrel sizes 20-28. Dial selectable, 8 indent crimp, controlled cycle ratchet – requires appropriate bayonet positioner determined by the contact part number.
Technical Specifications
Crimp Tool Type
Ratchet
Product Range
-
For Use With
Astro Tool MotionGrade M23 & M40 Series 32-20AWG Contacts
SVHC
No SVHC (21-Jan-2025)
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:82032000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.352901
