BESM18MI-PSC50B-BV03
Inductive Proximity Sensor, Cylindrical, BES Series, M18, 5 mm, PNP, 12 V to 30 V, Pre-wired

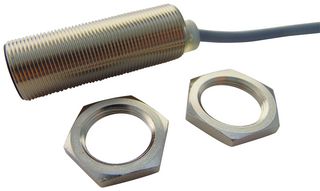

Image is for illustrative purposes only. Please refer to product description.
69 In Stock
Need more?
69 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY472.470 (CNY533.8911) |
| 5+ | CNY450.270 (CNY508.8051) |
| 10+ | CNY422.930 (CNY477.9109) |
| 25+ | CNY405.210 (CNY457.8873) |
| 50+ | CNY389.120 (CNY439.7056) |
| 100+ | CNY377.940 (CNY427.0722) |
Price for:Each
Minimum: 1
Multiple: 1
CNY472.47 (CNY533.89 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBALLUFF
Manufacturer Part NoBESM18MI-PSC50B-BV03
Order Code1606707
Technical Datasheet
Sensing Range Max5mm
Sensor TypeInductive Proximity Sensor
Operating Temperature Max70°C
Thread Size - MetricM18
Sensing Distance Min-
Sensor Output TypePNP
Sensing Distance Max-
Supply Voltage DC Min12V
Sensing Distance Nom5mm
Supply Voltage Min12VDC
Supply Voltage DC Max30V
Supply Voltage Max30VDC
Sensor Output Type3-Wire, PNP, NO
Sensor Case / PackageCylindrical M12 Thread
Sensor TerminalsCable
Sensor Body MaterialBrass
IP Rating-
Operating Temperature Min-25°C
Product Range-
Product Overview
The BESM18MI-PSC50B-BV03 is an Inductive Sensor features function indicator, polarity reversal protected, short circuit protected.
- Flush mountable mounting
- 0 to 4.0mm Assured operating distance
- 5.00mm Rated operating distance
- 700Hz Switching frequency
- No switching element function
- PNP Switching output
Applications
Sensing & Instrumentation
Technical Specifications
Sensing Range Max
5mm
Operating Temperature Max
70°C
Sensing Distance Min
-
Sensing Distance Max
-
Sensing Distance Nom
5mm
Supply Voltage DC Max
30V
Sensor Output Type
3-Wire, PNP, NO
Sensor Terminals
Cable
IP Rating
-
Product Range
-
Sensor Type
Inductive Proximity Sensor
Thread Size - Metric
M18
Sensor Output Type
PNP
Supply Voltage DC Min
12V
Supply Voltage Min
12VDC
Supply Voltage Max
30VDC
Sensor Case / Package
Cylindrical M12 Thread
Sensor Body Material
Brass
Operating Temperature Min
-25°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Tariff No:85365011
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.18
