1505F B591000

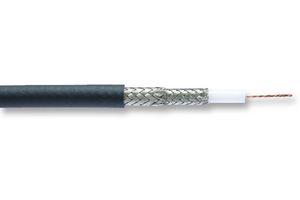

Coaxial Cable, Brilliance®, RG59, Copper, 6.15 mm, 75 ohm, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerBELDEN
Manufacturer Part No1505F B591000
Order Code1734736
Your Part Number
Technical Datasheet
2 In Stock
3,355 more incoming. You can reserve stock now
2 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY11,492.790 (CNY12,986.8527) |
| 5+ | CNY11,249.350 (CNY12,711.7655) |
Price for:Reel of 1
Minimum: 1
Multiple: 1
CNY11,492.79 (CNY12,986.85 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerBELDEN
Manufacturer Part No1505F B591000
Order Code1734736
Technical Datasheet
Coaxial Cable TypeRG59
Conductor Area CSA-
Conductor MaterialCopper
External Diameter6.15mm
Impedance75ohm
Jacket ColourBlack
Jacket MaterialPVC
No. of Max Strands x Strand Size7 x 0.286mm
Product Range-
Reel Length (Imperial)1000ft
Reel Length (Metric)304.8m
Wire Gauge22AWG
Product Overview
- CPR: Not Yet Qualified
- 75Ω
- Conductor: Bare Copper
- Dielectric: FHDPE
- Shield: Tinned Copper Braid
- Jacket: Black PVC
Technical Specifications
Coaxial Cable Type
RG59
Conductor Material
Copper
Impedance
75ohm
Jacket Material
PVC
Product Range
-
Reel Length (Metric)
304.8m
Conductor Area CSA
-
External Diameter
6.15mm
Jacket Colour
Black
No. of Max Strands x Strand Size
7 x 0.286mm
Reel Length (Imperial)
1000ft
Wire Gauge
22AWG
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85442000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):20.4
