1868E

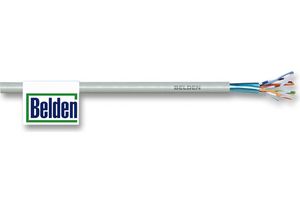

Networking Cable, DataTwist, Per Metre, Screened, Cat5e, 26 AWG, 0.18 mm²
Image is for illustrative purposes only. Please refer to product description.
1,217 In Stock
Need more?
1217 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY22.770 (CNY25.7301) |
Price for:1 Metre
Minimum: 1
Multiple: 1
CNY22.77 (CNY25.73 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBELDEN
Manufacturer Part No1868E
Order Code1491561
Technical Datasheet
Cable ShieldingScreened
LAN CategoryCat5e
Reel Length (Imperial)-
Reel Length (Metric)-
No. of Pairs4 Pair
Jacket ColourGrey
No. of Max Strands x Strand Size7 x 0.16mm
Jacket MaterialPVC
Conductor MaterialCopper
Product Range-
Product Overview
The 1868E is a Datatwist® grey CAT-5E F/UTP Network Cable with polyethylene insulation, stranded bare copper ETP and PVC jacket. The network cable features laminated aluminium/polyester foil shield.
- CPR: Not Yet Qualified
- <lt/>14.5Ω/100m DC Conductor resistance
- ≥5000MΩ/km Insulation resistance
- <lt/>1600pF/km Unbalance pair to ground capacitance
- 1.5A Maximum continuous current per conductor (at 25°C)
- -30 to 60°C Operating temperature range
Applications
Communications & Networking
Technical Specifications
Cable Shielding
Screened
Reel Length (Imperial)
-
No. of Pairs
4 Pair
No. of Max Strands x Strand Size
7 x 0.16mm
Conductor Material
Copper
LAN Category
Cat5e
Reel Length (Metric)
-
Jacket Colour
Grey
Jacket Material
PVC
Product Range
-
Technical Docs (1)
Alternatives for 1868E
1 Product Found
Associated Products
7 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.283
