BELDEN 8778

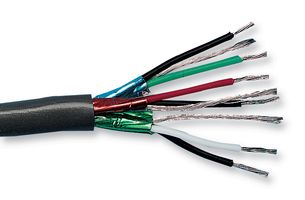

Multipair Cable, Per M, Screened, 6 Pair, 22 AWG, 0.325 mm²

BELDEN 8778
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BELDEN BELDEN
Manufacturer Part No:
8778
Order Code:
1218685
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Technical Datasheet:
8778   Datasheet
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Range Selector (TUK SGACK902S Keystone Coupler)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Screened

:
6 Pair

:
22AWG

:
0.325mm²

:
-

:
-

:
Chrome

:
7 x 0.255mm

:
30Vrms

:
PVC

:
Tinned Copper

:
9.2mm

:
TUK SGACK902S Keystone Coupler

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Product Overview

The 8778 is a 6-pair CM-rated Multi-conductor Cable with 22AWG stranded (7x30) tinned copper conductor, polypropylene insulation, twisted pairs individually shielded with Beldfoil® aluminium foil-polyester tape (100% coverage) and overall chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
  • CPR: Not Yet Qualified
  • 50R Nominal characteristic impedance
  • 0.18µH/ft Nominal inductance
  • 30pF/ft Conductor to shield nominal capacitance
  • 55pF/ft Conductor to other conductor and shield nominal capacitance
  • 66% Nominal velocity of propagation
  • 15R/1000ft at 20°C Nominal conductor DC resistance
  • UL1685 Flame tested

Applications

Industrial
