RLB9012-102KL
Inductor, Radial, RLB Series, 1 mH, 510 mA, 2.9 ohm, ± 10%

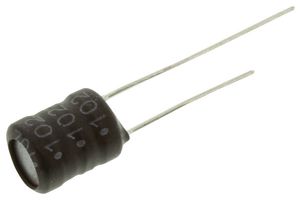

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBOURNS
Manufacturer Part NoRLB9012-102KL
Order Code1929712
Product RangeRLB9012 Series
Technical Datasheet
2,993 In Stock
1,000 more incoming. You can reserve stock now
2993 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY3.600 (CNY4.068) |
| 5+ | CNY3.290 (CNY3.7177) |
| 10+ | CNY2.980 (CNY3.3674) |
| 25+ | CNY2.760 (CNY3.1188) |
| 50+ | CNY2.500 (CNY2.825) |
| 200+ | CNY2.230 (CNY2.5199) |
Price for:Each
Minimum: 1
Multiple: 1
CNY3.60 (CNY4.07 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerBOURNS
Manufacturer Part NoRLB9012-102KL
Order Code1929712
Product RangeRLB9012 Series
Technical Datasheet
Product RangeRLB9012 Series
Inductance1mH
Inductor ConstructionUnshielded
RMS Current (Irms)510mA
Saturation Current (Isat)-
DC Resistance Max2.9ohm
Inductance Tolerance± 10%
SVHCNo SVHC (25-Jun-2025)
Product Overview
RLB9012-102KL is a radial inductor. The applications include power supplies, DC/DC converters, and general use.
- Inductance is 1000.0 ±10%µH (1KHz), 20Q reference, 0.252MHz Q test frequency
- 1.30MHz min SRF, 2.900 ohm max RDC, 0.51A max IDC
- Inductance drop at rated current (IDC) is 5%
- Ferrite DR core material, enamelled copper wire material, Cu/AG/Sn terminal
- Operating temperature range from -55°C to +125°C
Technical Specifications
Product Range
RLB9012 Series
Inductor Construction
Unshielded
Saturation Current (Isat)
-
Inductance Tolerance
± 10%
Inductance
1mH
RMS Current (Irms)
510mA
DC Resistance Max
2.9ohm
SVHC
No SVHC (25-Jun-2025)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002495
