RI-60SMD1015
Reed Switch, RI-60 SMD Series, SPST-NO, Surface Mount, 500 mA, 200 VDC, 10 W

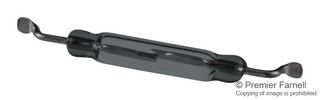

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCOMUS
Manufacturer Part NoRI-60SMD1015
Order Code2787223
Product RangeRI-60 SMD Series
Technical Datasheet
2,955 In Stock
Need more?
2955 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY10.910 (CNY12.3283) |
| 10+ | CNY9.970 (CNY11.2661) |
| 25+ | CNY9.350 (CNY10.5655) |
| 50+ | CNY8.890 (CNY10.0457) |
| 100+ | CNY8.330 (CNY9.4129) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
CNY10.91 (CNY12.33 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerCOMUS
Manufacturer Part NoRI-60SMD1015
Order Code2787223
Product RangeRI-60 SMD Series
Technical Datasheet
Product RangeRI-60 SMD Series
Contact ConfigurationSPST-NO
Switch MountingSurface Mount
Contact Current Max500mA
Switching Voltage Max200VDC
Switching Power Max10W
Contact Resistance Max125µohm
Operate AT Min10AT
Operate AT Max15AT
SVHCNo SVHC (14-Jun-2023)
Product Overview
The RI-60SMD1015 is a SPST-NO SMD Ultra-miniature Dry Reed Switch hermetically sealed in a gas-filled glass envelope. It has normally open contacts and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in relays, sensors, pulse counters or similar devices.
- Ideal for ATE switching
- Contact layers gold, sputtered ruthenium
- Superior glass-to-metal seal and blade alignment
- Excellent life expectancy and reliability
- -55 to 125°C Operating temperature range
Applications
Sensing & Instrumentation, Industrial
Technical Specifications
Product Range
RI-60 SMD Series
Switch Mounting
Surface Mount
Switching Voltage Max
200VDC
Contact Resistance Max
125µohm
Operate AT Max
15AT
Contact Configuration
SPST-NO
Contact Current Max
500mA
Switching Power Max
10W
Operate AT Min
10AT
SVHC
No SVHC (14-Jun-2023)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Netherlands
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (14-Jun-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000158
