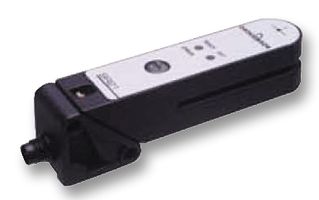

SR21-IR
Photoelectric Sensor, Slot, SR21 Series, 2 mm, NPN / PNP, 10 Vdc to 30Vdc
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY1,317.840 (CNY1,489.1592) |
| 5+ | CNY1,270.240 (CNY1,435.3712) |
| 10+ | CNY1,227.690 (CNY1,387.2897) |
| 25+ | CNY1,218.020 (CNY1,376.3626) |
| 50+ | CNY1,208.340 (CNY1,365.4242) |
| 100+ | CNY1,159.250 (CNY1,309.9525) |
Product Information
Product Overview
The SR21-IR is a microprocessor-based Slot Sensor with ZAMA housing, glass lens and M8 4-pole connector. The slot sensor of the SR21 series, with 2mm slot width, characterized by a high 12-bit (4096 steps) resolution, a low 20µs response time and a switching frequency reaching 25kHz. The setting of the switching threshold is carried-out automatically by simply pressing a push-button or dynamically during label movement. The SR21-IR model with infrared emission is ideal for label or hole detection on continuous surfaces.
- 0.5mm Resolution
- Auto set pushbutton setting
- Yellow output LED indication
- 20µs Maximum response time
- IP67 Protection rating
- -25 to 60°C Operating temperature range
Applications
Sensing & Instrumentation
Technical Specifications
Slot Sensor
7.5mm
10V
30V
SR21 Series
10VDC
880nm Infrared LED
IP65
60°C
2mm
NPN / PNP
-
Digital - Push-Pull, PNP / NPN
4 Pin M8 Connector
30VDC
-
-20°C
No SVHC (15-Jan-2018)
