EG4208A
Slide Switch, Subminiature, 4PDT, Through Hole, EG Series, 200 mA

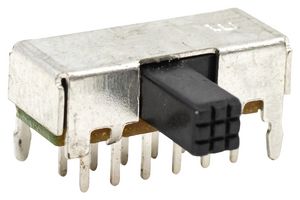

Image is for illustrative purposes only. Please refer to product description.
828 In Stock
Need more?
4 Next business day delivery available(Shanghai stock)
824 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY11.890 (CNY13.4357) |
| 10+ | CNY10.750 (CNY12.1475) |
| 25+ | CNY9.830 (CNY11.1079) |
| 50+ | CNY9.420 (CNY10.6446) |
| 100+ | CNY9.000 (CNY10.170) |
Price for:Each
Minimum: 1
Multiple: 1
CNY11.89 (CNY13.44 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerE-SWITCH
Manufacturer Part NoEG4208A
Order Code4051009
Technical Datasheet
Contact Configuration4PDT
Switch Operation-
Switch MountingThrough Hole
Contact Current Max200mA
Contact Voltage AC Max-
Contact Voltage DC Max30V
OrientationRight Angle
SVHCNo SVHC (25-Jun-2025)
Product Overview
The EG4208A is a subminiature slide switch from E-Switch, designed for applications requiring multiple circuit control in a compact form factor. It features a 4PDT (Four Pole Double Throw) configuration, allowing it to switch four separate circuits simultaneously. This makes it ideal for complex signal routing or mode selection in electronic devices. The switch is designed for through-hole PCB mounting with a right-angle orientation, making it suitable for edge-mounted or low-profile applications. It supports a maximum current rating of 200 mA at 30 V DC, and is part of the EG Series, known for its reliability and small footprint.
- Switch Type: Slide, 4PDT
- Function: On-On-On (non-shorting)
- Mounting Style: PCB, Right Angle
- Termination Style: Solder terminals
- Current Rating: 200mA @ 30V DC
- Actuator Length: 6mm
- Switch Travel: 2.5mm
- Contact Material: Copper alloy
- Contact Finish: Silver
- Operating Temperature: -20°C to +70°C
- Operating Force: 200gf
Technical Specifications
Contact Configuration
4PDT
Switch Mounting
Through Hole
Contact Voltage AC Max
-
Orientation
Right Angle
Switch Operation
-
Contact Current Max
200mA
Contact Voltage DC Max
30V
SVHC
No SVHC (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85365019
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001229
