16.000MHZ MJ/30/30/-40+85/12PF/ATF
Crystal, MJ, 16 MHz, 30 ppm, 30 ppm, 12 pF

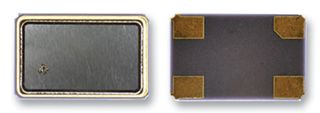

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEUROQUARTZ
Manufacturer Part No16.000MHZ MJ/30/30/-40+85/12PF/ATF
Order Code1640930
Product RangeMJ
Your Part Number
Technical Datasheet
7 In Stock
1,000 more incoming. You can reserve stock now
7 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY9.970 (CNY11.2661) |
| 10+ | CNY8.600 (CNY9.718) |
| 25+ | CNY8.430 (CNY9.5259) |
| 50+ | CNY8.260 (CNY9.3338) |
| 100+ | CNY7.780 (CNY8.7914) |
| 500+ | CNY7.250 (CNY8.1925) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
CNY9.97 (CNY11.27 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEUROQUARTZ
Manufacturer Part No16.000MHZ MJ/30/30/-40+85/12PF/ATF
Order Code1640930
Product RangeMJ
Technical Datasheet
Product RangeMJ
Frequency Nom16MHz
Crystal Frequency16MHz
Frequency Tolerance + / -30ppm
Frequency Stability + / -30ppm
Load Capacitance12pF
Crystal Case / PackageSMD, 5mm x 3.2mm
No. of Pins4Pins
Crystal MountingSMD
Operating Temperature Min-40°C
Operating Temperature Max85°C
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 16.000MHZ MJ/30/30/40/12PF is a 5 x 3.2 x 0.9mm 30ppm miniature surface-mount Quartz Crystal produced with a ceramic substrate and seam-welded metal lid. The MJ series crystal is high shock and vibration resistance and its compact size and low mass make it an ideal crystal for high-density applications.
- Fundamental operation mode
- 50Ω Maximum equivalent series resistance
- 5pF Maximum shunt capacitance
- 100µW Maximum drive level
Applications
Clock & Timing
Technical Specifications
Product Range
MJ
Crystal Frequency
16MHz
Frequency Stability + / -
30ppm
Crystal Case / Package
SMD, 5mm x 3.2mm
Crystal Mounting
SMD
Operating Temperature Max
85°C
Frequency Nom
16MHz
Frequency Tolerance + / -
30ppm
Load Capacitance
12pF
No. of Pins
4Pins
Operating Temperature Min
-40°C
SVHC
No SVHC (23-Jan-2024)
Technical Docs (1)
Alternatives for 16.000MHZ MJ/30/30/-40+85/12PF/ATF
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85416000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002
