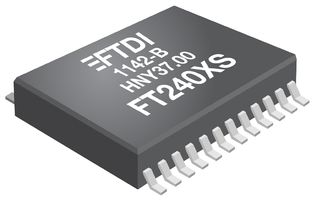

FT240XS-R

FT240XS-R is an USB full-speed to parallel FIFO interface with USB charger detection. This USB 2.0 full-speed IC offers a compact bridge to 8-bit wide FIFO interfaces. This device is a FIFO, capable of operating up to 1MByte/s, with low power consumption (8mA). The FT240X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over an 8-bit wide FIFO interface. Applications include upgrading legacy peripherals to USB cellular and cordless phone USB data transfer cables and interfaces, interfacing MCU/PLD/FPGA-based designs to USB, USB smart card readers, USB industrial control, USB FLASH card reader and writers, set-top box PC – USB interface, USB digital camera interface, USB instrumentation, dedicated charging port (DCP) detection enables battery charging at a higher current for faster charge times.

• Fully integrated 2048 byte MTP memory for storing device descriptors and CBUS I/O configuration
• Data transfer rates to 1MByte/s, configurable CBUS I/O pins
• Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
• Device supplied pre-programmed with unique USB serial number
• Supports bus powered, self powered and high-power bus powered USB configurations
• Integrated +3.3V level converter for USB I/O, configurable I/O pin output drive strength
• Integrated power-on-reset circuit, low USB bandwidth consumption
• UHCI/OHCI/EHCI host controller compatible, USB 2.0 full speed compatible
• Ambient operating temperature range from -40°C to +85°C
• 24-pin SSOP package

Warnings

ESD sensitive device, take proper precaution while handling the device.
