BG302-06-A-L-G
PCB Receptacle, Board-to-Board, 2.54 mm, 1 Rows, 6 Contacts, Through Hole Mount Right Angle

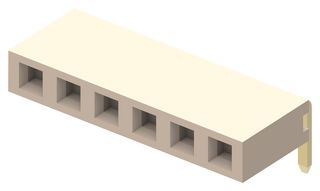

Image is for illustrative purposes only. Please refer to product description.
ManufacturerGCT
Manufacturer Part NoBG302-06-A-L-G
Order Code2084276
Product RangeWhite Lite BG302
Technical Datasheet
937 In Stock
Need more?
105 Delivery in 5-6 Business Days(UK stock)
832 Delivery in 5-6 Business Days(US stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY4.770 (CNY5.3901) |
| 10+ | CNY4.020 (CNY4.5426) |
| 100+ | CNY3.420 (CNY3.8646) |
| 250+ | CNY3.060 (CNY3.4578) |
| 1000+ | CNY2.900 (CNY3.277) |
| 3000+ | CNY2.590 (CNY2.9267) |
| 10000+ | CNY2.470 (CNY2.7911) |
Price for:Each
Minimum: 1
Multiple: 1
CNY4.77 (CNY5.39 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerGCT
Manufacturer Part NoBG302-06-A-L-G
Order Code2084276
Product RangeWhite Lite BG302
Technical Datasheet
Connector SystemsBoard-to-Board
Pitch Spacing2.54mm
No. of Rows1Rows
No. of Contacts6Contacts
Connector MountingThrough Hole Mount Right Angle
Product RangeWhite Lite BG302
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCNo SVHC (27-Jun-2024)
Product Overview
The BG302-06-A-L-G is a 6-contact 2.54mm white right angle Board-to-board Socket with gold plated copper alloy contact, UL94V-0 natural LCP 30% glass filled polyester standard insulator. The BG302 series receptacle with tuning fork type contacts, through hole type PCB mount. LCP is suitable for IR reflow, wave and manual solder.
- No locating peg
- 3A Current rating
- 20mΩ Maximum contact resistance
- 1000MΩ Minimum insulation resistance
- 1000VAC for one minute Dielectric withstanding voltage
- 0.64mm Mates with square pin size
Applications
Industrial, Consumer Electronics
Technical Specifications
Connector Systems
Board-to-Board
No. of Rows
1Rows
Connector Mounting
Through Hole Mount Right Angle
Contact Material
Copper Alloy
SVHC
No SVHC (27-Jun-2024)
Pitch Spacing
2.54mm
No. of Contacts
6Contacts
Product Range
White Lite BG302
Contact Plating
Gold Plated Contacts
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000467
