02 02 160 2201

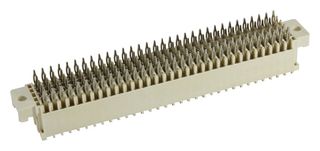

DIN 41612 Connector, har-bus 64, 160 Contacts, Receptacle, 2.54 mm, 5 Row, z + a + b + c + d
600 more incoming. You can reserve stock now
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY92.160 (CNY104.1408) |
| 15+ | CNY90.210 (CNY101.9373) |
| 50+ | CNY87.450 (CNY98.8185) |
| 100+ | CNY85.330 (CNY96.4229) |
| 250+ | CNY83.980 (CNY94.8974) |
Product Information
Product Overview
The 02 02 160 2201 is a Harting har-bus® 64 160-position Female DIN 41612 Backplane Signal Connector, with flange, straight orientation, copper alloy contacts with gold over nickel plated and press in termination and length 4.5/5.0mm. The design of HAR-BUS® 64 female connector allows mating of any combinations of the 5-row version without mechanical interference, thus making it possible for users to upgrade and maintain existing systems at lower costs. It is also possible to mate 5 row male connectors with 3 row female connectors. The feature of backward compatibility allows a gradual upgrade of existing Eurocard based systems without the additional cost of a complete system redesign. The HAR-BUS® 64 provides the opportunity to adapt the system economically without a complete redesign to new bus architecture.
- PL 2 according to IEC 61076-4-113 250 mating cycles
- UL94V-0 Flammability rating
Applications
Industrial
Technical Specifications
har-bus 64
Receptacle
5 Row
Gold Plated Contacts
250
160Contacts
2.54mm
z + a + b + c + d
Copper Alloy
No SVHC (08-Jul-2021)
Technical Docs (3)
Alternatives for 02 02 160 2201
1 Product Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
