190 In Stock
Need more?
190 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY20.670 (CNY23.3571) |
| 10+ | CNY19.900 (CNY22.487) |
| 100+ | CNY19.480 (CNY22.0124) |
| 250+ | CNY19.090 (CNY21.5717) |
| 500+ | CNY18.690 (CNY21.1197) |
Price for:Each
Minimum: 1
Multiple: 1
CNY20.67 (CNY23.36 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARTING
Manufacturer Part No09 02 132 7931
Order Code1106718
Product RangeType B
Technical Datasheet
Product RangeType B
No. of Contacts32Contacts
Pitch Spacing2.54mm
No. of Rows1 Row
Rows Loadeda
Contact PlatingGold Plated Contacts
Contact MaterialBrass
No. of Mating Cycles50
SVHCNo SVHC (25-Jun-2025)
Product Overview

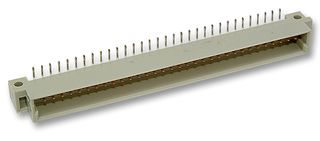

The 09 02 132 7931 is a 32-position 1-row straight male DIN-signal Connector with copper alloy contacts and a PBT insulator. It has solder termination and flange. It is suitable for use with cable-to-board applications.
- 2A at 20°C Current
- 1000V Test voltage
- 20mΩ Maximum contact resistance
Applications
Industrial
Technical Specifications
Product Range
Type B
Gender
Plug
No. of Rows
1 Row
Contact Plating
Gold Plated Contacts
No. of Mating Cycles
50
No. of Contacts
32Contacts
Pitch Spacing
2.54mm
Rows Loaded
a
Contact Material
Brass
SVHC
No SVHC (25-Jun-2025)
Technical Docs (2)
Alternatives for 09 02 132 7931
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.008
