239 In Stock
109,090 more incoming. You can reserve stock now
105 Next business day delivery available(Shanghai stock)
134 Delivery in 3-4 Business Days(Shanghai stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY59.390 (CNY67.1107) |
| 10+ | CNY57.720 (CNY65.2236) |
| 25+ | CNY55.330 (CNY62.5229) |
Price for:Pack of 100
Minimum: 1
Multiple: 1
CNY59.39 (CNY67.11 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHARWIN
Manufacturer Part NoM20-1180042
Order Code1022219
Product RangeM20
Technical Datasheet
Product RangeM20
Contact PlatingGold Plated Contacts
Contact MaterialBrass
Contact GenderSocket
Contact Termination TypeCrimp
For Use WithM20-106 or M20-107 Housings
Wire Size AWG Min30AWG
Wire Size AWG Max22AWG
SVHCNo SVHC (21-Jan-2025)
Product Overview

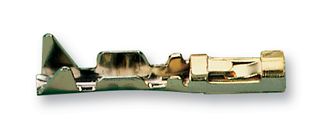

The M20-118 series from Harwin are 2.54mm pitch female crimp contacts. These contacts are used with M20-106 and M20-107 series female crimp housings.
- Suitable for wire sizes from 22AWG to 30AWG
- Available in gold + tin and tin over nickel finish
- Contact material is brass
Applications
Industrial
Technical Specifications
Product Range
M20
Contact Material
Brass
Contact Termination Type
Crimp
Wire Size AWG Min
30AWG
SVHC
No SVHC (21-Jan-2025)
Contact Plating
Gold Plated Contacts
Contact Gender
Socket
For Use With
M20-106 or M20-107 Housings
Wire Size AWG Max
22AWG
Technical Docs (2)
Alternatives for M20-1180042
6 Products Found
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.007772
