M80-5403442
Pin Header, Wire-to-Board, 2 mm, 2 Rows, 34 Contacts, Through Hole, Datamate J-Tek M80

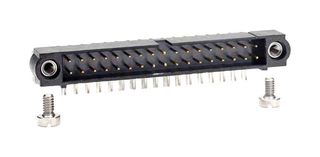

Image is for illustrative purposes only. Please refer to product description.
ManufacturerHARWIN
Manufacturer Part NoM80-5403442
Order Code2853735
Product RangeDatamate J-Tek M80
Technical Datasheet
282 In Stock
Need more?
282 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY164.160 (CNY185.5008) |
| 2+ | CNY160.540 (CNY181.4102) |
| 3+ | CNY157.080 (CNY177.5004) |
Price for:Each
Minimum: 1
Multiple: 1
CNY164.16 (CNY185.50 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerHARWIN
Manufacturer Part NoM80-5403442
Order Code2853735
Product RangeDatamate J-Tek M80
Technical Datasheet
Connector SystemsWire-to-Board
Pitch Spacing2mm
No. of Rows2Rows
No. of Contacts34Contacts
Contact Termination TypeThrough Hole
Product RangeDatamate J-Tek M80
Connector ShroudShrouded
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector TypePCB Header
SVHCNo SVHC (25-Jun-2025)
Product Overview
M80-5403442 is a 34 position, 2mm pitch high-reliability Datamate J-Tek male DIL horizontal through board connector.
- Double row, 3mm PC tail connector with 3.5mm board mount jackscrews - 34 contacts (17+17)
- Gold finish on contact area, tin finish on termination
- Slotted bolts provided for assembly to panel mount jackscrew
- Internal thread fixing with board/front panel mount style of jackscrews
- Phosphor bronze base material of contact
- UL94V-0 flammability rating
- Operating temperature range from -55°C to +125°C
- Polarised connector
- PPS housing material
Technical Specifications
Connector Systems
Wire-to-Board
No. of Rows
2Rows
Contact Termination Type
Through Hole
Connector Shroud
Shrouded
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Pitch Spacing
2mm
No. of Contacts
34Contacts
Product Range
Datamate J-Tek M80
Contact Material
Phosphor Bronze
Connector Type
PCB Header
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.003096
