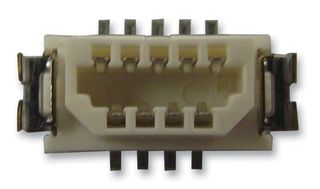

DF9B-9S-1V(32)
Mezzanine Connector, Receptacle, 1 mm, 2 Rows, 9 Contacts, Surface Mount, Phosphor Copper
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 10+ | CNY6.370 (CNY7.1981) |
| 25+ | CNY5.960 (CNY6.7348) |
| 100+ | CNY5.730 (CNY6.4749) |
| 250+ | CNY5.150 (CNY5.8195) |
| 500+ | CNY4.690 (CNY5.2997) |
| 1000+ | CNY3.710 (CNY4.1923) |
| 5000+ | CNY3.600 (CNY4.068) |
Product Information
Product Overview
The DF9 series SMT Board-to-Board Connectors comply with the standard connector specification for the flat panel display interface, which U.S VESA and has selected as FPDI-1. The mating area is designed in a trapezoidal structure and perfectly prevents the mis-insertion despite the miniature size. The contact is constructed without the material frangible surface in the contact portion and provides a smooth insertion and use feeling. Two type plating, tin-plated and gold-plated are prepared.
- Perfect Mis-insertion Prevention
- Equipped with Easy Lock mechanism
- Smooth insertion and extraction feeling
- Setting two type plating as standard
Applications
Portable Devices, Consumer Electronics
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Receptacle
2Rows
Surface Mount
Tin Plated Contacts
No SVHC (23-Jan-2024)
1mm
9Contacts
Phosphor Copper
DF9
Technical Docs (3)
Alternatives for DF9B-9S-1V(32)
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Indonesia
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
