930103188

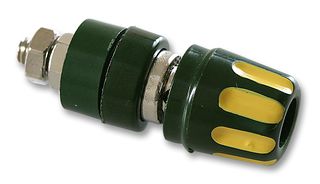

Binding Post, PKI 10 A Series, 35 A, 60 V, Nickel Plated Contacts, Panel Mount, Green, Yellow
Image is for illustrative purposes only. Please refer to product description.
ManufacturerHIRSCHMANN TEST AND MEASUREMENT
Manufacturer Part No930103188
Order Code4017730
Product RangePKI 10 A Series
Technical Datasheet
149 In Stock
Need more?
149 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY236.310 (CNY267.0303) |
| 5+ | CNY231.660 (CNY261.7758) |
| 10+ | CNY149.390 (CNY168.8107) |
Price for:Pack of 5
Minimum: 1
Multiple: 1
CNY236.31 (CNY267.03 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerHIRSCHMANN TEST AND MEASUREMENT
Manufacturer Part No930103188
Order Code4017730
Product RangePKI 10 A Series
Technical Datasheet
Product RangePKI 10 A Series
Current Rating35A
Voltage Rating60V
Contact PlatingNickel Plated Contacts
Connector MountingPanel Mount
Connector ColourGreen, Yellow
Contact MaterialBrass
SVHCNo SVHC (23-Jan-2024)
Product Overview
The 930103100 is a 4mm Pole Clamp Socket with claw edge, captive insulated head, insulated ring, panel mounting, nickel-plated brass threaded bolt with Ø2mm transverse hole. For insulated, non-rotating installation in equipment chassis and switch panels with a wall thickness up to 2mm.
- IEC 61010, CAT I measurement category
- Available in variety of colours
- 4mm diameter unsprung socket and 2mm cross hole diameter
- M4 threaded termination and screw mounting
- Rated voltage of 30VAC / 60VDC
- Contact resistance is 2mohm
- Nickel plated brass contacts
- PA housing material
- Temperature range from -25°C to 100°C
Technical Specifications
Product Range
PKI 10 A Series
Voltage Rating
60V
Connector Mounting
Panel Mount
Contact Material
Brass
Current Rating
35A
Contact Plating
Nickel Plated Contacts
Connector Colour
Green, Yellow
SVHC
No SVHC (23-Jan-2024)
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Germany
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (23-Jan-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.05338
