KITXMC71EVKLITEV1TOBO1

KITXMC71EVKLITEV1TOBO1 is a XMC7100 evaluation board (KIT_XMC71_EVK_LITE_V1) that enables you to evaluate and develop your applications using the XMC7100D microcontroller. The XMC7100D is designed for industrial applications and is a true programmable embedded system-on-chip, integrating up to two 250MHz Arm® Cortex®-M7 as the primary application processors, 100MHz Arm® Cortex®-M0+ that supports the following: low-power operations, up to 4MB flash and 768KB SRAM, CAN FD and programmable analogue and digital peripherals that allow faster time-to-market. Typical applications include Industrial drives, robotics, BMS and I/O devices.

• XMC7100D-F176K4160AA in 176 pin TEQFP with dual 250/100MHz Arm® Cortex®-M7/Cortex®-M0+ CPUs
• CAN FD TRX, GB Ethernet PHY TRX with RJ45 CONN interface, a micro-B CONN for USB device interface
• A potentiometer that can be used to simulate analogue sensor output
• A mode button and a mode LED for KitProg3
• Two user LEDs, two user buttons, and a reset button for the XMC7100D
• KitProg3 on-BRD programmer/debugger, USB-UART and USB-I2C bridge functionality through USB connector
• Headers compatible with Arduino for interfacing Arduino shields
• Two S2GO headers and a mikroBus header for interfacing sensors
• Fully compatible with the latest version of ModusToolbox™ and 512Mbit QSPI NOR flash
• Board supports operating voltages from 3.3V to 5V for XMC7100D

Contents

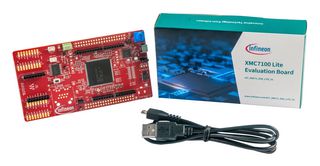

XMC7100 evaluation board, USB Type-A to Micro-B cable and quick start guide.
