INFINEON S2GO3DSENSETLV493DTOBO1

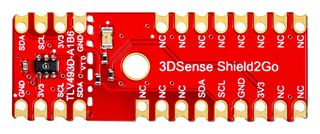

Development Board, TLV493D 3D Magnetic Sensor, Ultra Low Power

INFINEON S2GO3DSENSETLV493DTOBO1
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
INFINEON INFINEON
Manufacturer Part No:
S2GO3DSENSETLV493DTOBO1
Order Code:
2887011
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Also Known As:
S2GO_3D-SENSE_TLV493D, SP001823678
ECAD / MCAD
Supply Frame Models Link
See all Technical Docs

Product Overview

S2GO3DSENSETLV493DTOBO1 is an evaluation board to evaluate TLV493D-A1B6 3D magnetic sensor offers accurate three-dimensional sensing with extremely low power consumption. It offers a unique customer and evaluation experience – the board is equipped with one TLV493D-A1B6 magnetic sensor and comes with a ready-to-use Arduino library. Customers can now develop their own system solutions by combining Shield2Go boards together with Infineon My IoT adapters. Typical applications include Joystick e.g. finger, thumb and gaming paddles, E-meters e.g. anti-tampering and control elements e.g. white goods, multifunction knob.
  • 3D magnetic sensing
  • Low current consumption 0.007μA in power down mode
  • 2.7 to 3.5V operating supply voltage
  • Digital output via 2-wire standard I2C interface
  • Bx, By and Bz linear field measurement up to ±130mT
  • 12-bit data resolution for each measurement direction
  • Operating temperature range from -40°C to 125°C
  • Free and easy download of Arduino libraries
  • 2Go board can be easily combined to systems by using My IoT adapters

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product Information


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (1)

Also Known As

S2GO_3D-SENSE_TLV493D, SP001823678
