CA-RSPNMA002

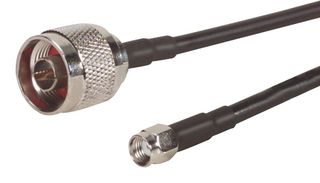

RF / Coaxial Cable Assembly, SMA RP Plug to N-Type Plug, 50 ohm, 2 ft, 610 mm, Black
Image is for illustrative purposes only. Please refer to product description.
ManufacturerL-COM
Manufacturer Part NoCA-RSPNMA002
Order Code2579809
Product RangeCA-RSPNMA Series
Technical Datasheet
19 In Stock
Need more?
19 Delivery in 5-6 Business Days(US stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY252.910 (CNY285.7883) |
| 10+ | CNY247.860 (CNY280.0818) |
| 25+ | CNY242.800 (CNY274.364) |
| 100+ | CNY237.740 (CNY268.6462) |
| 250+ | CNY232.680 (CNY262.9284) |
| 500+ | CNY227.620 (CNY257.2106) |
Price for:Each
Minimum: 1
Multiple: 1
CNY252.91 (CNY285.79 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerL-COM
Manufacturer Part NoCA-RSPNMA002
Order Code2579809
Product RangeCA-RSPNMA Series
Technical Datasheet
Connector to ConnectorSMA RP Plug to N-Type Plug
Cable Length - Imperial2ft
Cable Length - Metric610mm
Coaxial Cable Type-
Connector Type ASMA RP Straight Plug
Connector Type BN Type Straight Plug
Impedance50ohm
Jacket ColourBlack
Product RangeCA-RSPNMA Series
Product Overview
The CA-RSPNMA002 is a 2ft reverse polarity SMA plug to N-male Cable Assembly featuring high performance low loss 195-series coax cable and RF grade SMA connector and N connector terminations. Solid bare copper center conductor and polyvinyl chloride (CMP grade for plenum rated) jacket. This low loss coaxial cable is perfect for use with Wi-Fi Antennas and radios.
- High performance
- Excellent low loss characteristics
- Each assembly is fully tested ensuring the highest quality
- 0.50" (12.7mm) Minimum bend radius
- -20 to +60°C Operating temperature range
Applications
Wireless, RF Communications, Imaging, Video & Vision, Communications & Networking
Technical Specifications
Connector to Connector
SMA RP Plug to N-Type Plug
Cable Length - Metric
610mm
Connector Type A
SMA RP Straight Plug
Impedance
50ohm
Product Range
CA-RSPNMA Series
Cable Length - Imperial
2ft
Coaxial Cable Type
-
Connector Type B
N Type Straight Plug
Jacket Colour
Black
Technical Docs (2)
Alternatives for CA-RSPNMA002
2 Products Found
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85442000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.057153
