RAA-S2TH-6.0-150-NP-2.0-C5-T
NTC, THERMISTOR, PROBE, 3977K, 10KOHM
Need more?
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY431.430 (CNY487.5159) |
| 5+ | CNY398.460 (CNY450.2598) |
| 10+ | CNY373.020 (CNY421.5126) |
| 25+ | CNY355.450 (CNY401.6585) |
| 50+ | CNY338.530 (CNY382.5389) |
| 100+ | CNY323.030 (CNY365.0239) |
| 500+ | CNY309.690 (CNY349.9497) |
Product Information
Product Overview

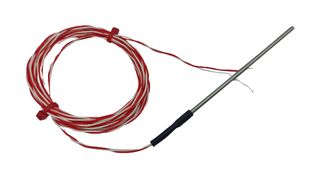

RAA-S2TH-6.0-150-NP-2.0-C5-T is a general-purpose 10K thermistor probe with 2m PTFE lead. This 2-wire 10K NTC thermistor is housed in a stainless-steel sheath with a temperature range of -50 to +150°C, and is a versatile temperature-sensing device. The stainless-steel sheath provides durability and protection, making this thermistor ideal for a wide range of applications, from industrial processes to consumer electronics and scientific research. Applications include environmental monitoring (HVAC systems, climate control devices) and industrial processes (equipment monitoring, process control).
- 2 wire, 10K thermistor, 6mm tube diameter, 150mm tube length, 2mm cable length
- PTFE insulated twisted leads cable type
- Bare tails cable termination
- Accuracy is +/- 0.2K (over 0-70°C)
- Operating temperature range from -50°C to 150°C
Technical Specifications
150mm
10kohm
-
-
3977K
-
Stainless Steel
2m
150°C
No SVHC (21-Jan-2025)
Probe with Leads
6mm
Stainless Steel
Free Hanging
-
-
6mm
-50°C
-
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
