WK-150

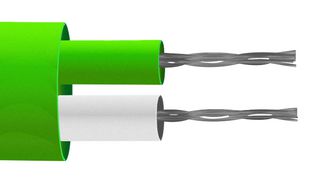

Thermocouple Wire, IEC, PVC Insulated, Flat Pair, Type K, 7 x 0.2mm, 100 m
Image is for illustrative purposes only. Please refer to product description.
ManufacturerLABFACILITY
Manufacturer Part NoWK-150
Order Code8598460
Also Known AsWK-150-D
Your Part Number
Technical Datasheet
23 In Stock
90 more incoming. You can reserve stock now
1 Delivery in 3-4 Business Days(SG stock)
22 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY1,408.210 (CNY1,591.2773) |
| 5+ | CNY1,356.650 (CNY1,533.0145) |
| 10+ | CNY1,329.520 (CNY1,502.3576) |
| 25+ | CNY1,302.390 (CNY1,471.7007) |
| 50+ | CNY1,275.260 (CNY1,441.0438) |
| 100+ | CNY1,248.120 (CNY1,410.3756) |
Price for:Reel of 100
Minimum: 1
Multiple: 1
CNY1,408.21 (CNY1,591.28 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLABFACILITY
Manufacturer Part NoWK-150
Order Code8598460
Also Known AsWK-150-D
Technical Datasheet
Thermocouple Wire TypeK
Length - Imperial328ft
Length - Metric100m
No. of Max Strands x Strand Size7 x 0.2mm
Wire Gauge-
Conductor Area CSA0.219mm²
Conductor TypeStranded
Colour Code StandardIEC
InsulationPVC (Polyvinylchloride)
Operating Temperature Min-10°C
Operating Temperature Max105°C
Product Range-
SVHCNo SVHC (04-Feb-2026)
Product Overview
The WK-150 is a 100m PVC Insulated Flat Pair Thermocouple Extension Cable. All round general purpose cable, both waterproof and very flexible, thermocouple extension type for K and 7/0.2mm stranded conductor available.
- -10 to 105°C Insulation rating
- Class-2 Tolerance
Applications
Sensing & Instrumentation
Technical Specifications
Thermocouple Wire Type
K
Length - Metric
100m
Wire Gauge
-
Conductor Type
Stranded
Insulation
PVC (Polyvinylchloride)
Operating Temperature Max
105°C
SVHC
No SVHC (04-Feb-2026)
Length - Imperial
328ft
No. of Max Strands x Strand Size
7 x 0.2mm
Conductor Area CSA
0.219mm²
Colour Code Standard
IEC
Operating Temperature Min
-10°C
Product Range
-
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):1.6
