55100-3M-03-A

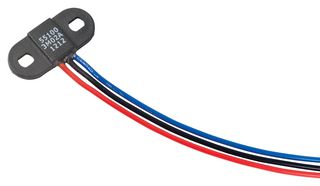

Hall Effect Proximity Sensor, Flange Mount, Sink, Wire Leads, 12.5 mm, 3.8 to 24 VDC, 55100 Series
Image is for illustrative purposes only. Please refer to product description.
267 In Stock
Need more?
267 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY47.280 (CNY53.4264) |
| 10+ | CNY46.740 (CNY52.8162) |
| 25+ | CNY46.200 (CNY52.206) |
| 50+ | CNY45.650 (CNY51.5845) |
| 100+ | CNY45.110 (CNY50.9743) |
| 500+ | CNY44.650 (CNY50.4545) |
Price for:Each
Minimum: 1
Multiple: 1
CNY47.28 (CNY53.43 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLITTELFUSE
Manufacturer Part No55100-3M-03-A
Order Code4209273
Technical Datasheet
Sensor TypeProximity Sensor
Sensing Range Max12.5mm
Supply Voltage DC Min3.8V
Activating Distance Min13mm
Activating Distance Max-
Supply Voltage DC Max24V
Output ConfigurationSink
Sensor MountingFlange
Sensor TerminalsWire Leads
Output Voltage400mV
Switching Speed0.1ms
Operating Temperature Min-40°C
Operating Temperature Max100°C
Technical Specifications
Sensor Type
Proximity Sensor
Supply Voltage DC Min
3.8V
Activating Distance Max
-
Output Configuration
Sink
Sensor Terminals
Wire Leads
Switching Speed
0.1ms
Operating Temperature Max
100°C
Sensing Range Max
12.5mm
Activating Distance Min
13mm
Supply Voltage DC Max
24V
Sensor Mounting
Flange
Output Voltage
400mV
Operating Temperature Min
-40°C
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00637
