MSL8602B
KEYSWITCH, SPDT, 2 POS, STD KEY

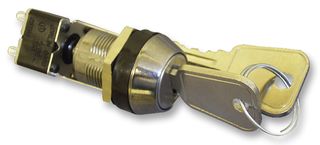

Image is for illustrative purposes only. Please refer to product description.
28 In Stock
50 more incoming. You can reserve stock now
28 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY121.340 (CNY137.1142) |
| 5+ | CNY116.560 (CNY131.7128) |
| 10+ | CNY111.580 (CNY126.0854) |
| 20+ | CNY107.100 (CNY121.023) |
| 50+ | CNY102.910 (CNY116.2883) |
Price for:Each
Minimum: 1
Multiple: 1
CNY121.34 (CNY137.11 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerLORLIN
Manufacturer Part NoMSL8602B
Order Code1774548
Technical Datasheet
Switch OperationOff-On
Contact ConfigurationDPST
Product Range-
No. of Switch Positions2 Position
Switch TerminalsSolder
Contact Current Max4A
Contact Voltage AC Nom250V
Contact Voltage DC Nom-
Angle of Throw90°
SVHCCadmium oxide (21-Jan-2025)
Product Overview
The MSL8602B is a SPDT Lock Switch with bracketed MS module and a built-in anti-pick system 8 disc lock. It has silver cadmium oxide contacts, G.F polyamide 6.6 switch chamber, chromium-plated bright zinc alloy lock housing and nickel-plated mild steel keys. This 90° steps lock movement switch has two part construction. The lock is inserted into the panel from the front. The mains switch module either bracketed, from the rear of the panel.
- UL94V-0 Flammability rating
- <gt/>999MΩ at 500VDC Initial insulation resistance
- <lt/>20Ωm Initial contact resistance
- -25 to 85°C Operating temperature range
Applications
Industrial
Technical Specifications
Switch Operation
Off-On
Product Range
-
Switch Terminals
Solder
Contact Voltage AC Nom
250V
Angle of Throw
90°
Contact Configuration
DPST
No. of Switch Positions
2 Position
Contact Current Max
4A
Contact Voltage DC Nom
-
SVHC
Cadmium oxide (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Cadmium oxide (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.66
