27 In Stock
Need more?
27 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY94.790 (CNY107.1127) |
| 5+ | CNY82.940 (CNY93.7222) |
| 10+ | CNY68.720 (CNY77.6536) |
| 50+ | CNY61.620 (CNY69.6306) |
| 100+ | CNY56.880 (CNY64.2744) |
| 250+ | CNY53.080 (CNY59.9804) |
Price for:Each
Minimum: 1
Multiple: 1
CNY94.79 (CNY107.11 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMEAN WELL
Manufacturer Part NoAPV-8-24
Order Code3253265
Product RangeAPV-8
Technical Datasheet
Power Supply ApplicationsITE
Output Power Max8W
Output Voltage Max24VDC
Output Current340mA
LED Driver ModeConstant Voltage
Input Voltage Min90V
Input Voltage Max264V
Product RangeAPV-8
SVHCNo SVHC (25-Jun-2025)
Product Overview

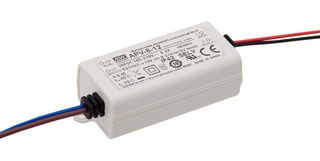

APV-8-24 is an APV-8 series 8W single output constant voltage mode single output LED switching power supply. This has exploiting class II design (without FG pin) and adopting the 94V to 0 flame retardant plastic enclose, it is ideally fits the entry-level LED applications. It is suitable for LED related fixture or appliance application. It includes short circuit, overload, over voltage protection. It also has no load power consumption <lt/>0.5W. Approved by UL8750, CSA C22.2 No.250.0-08, BIS IS15885, BIS IS15885, EAC TP TC 004, BS EN/EN 62368-1.
- Input voltage range from 90 to 264VAC, 127 to 370VDC, output DC voltage is 24V
- Output rated current is 0.34A, output rated power is 8.16W, efficiency is 81%
- Constant voltage mode power supply, universal AC input/full range
- Fully isolated plastic case, IP24 design
- Small and compact size, cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
- Working temperature range from -30 to +70°C
- Dimension is (L x W x H) 60 x 30 x 23.5mm
Technical Specifications
Power Supply Applications
ITE
Output Voltage Max
24VDC
LED Driver Mode
Constant Voltage
Input Voltage Max
264V
SVHC
No SVHC (25-Jun-2025)
Output Power Max
8W
Output Current
340mA
Input Voltage Min
90V
Product Range
APV-8
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.05
