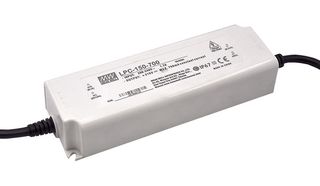

LPC-150-700
LED Driver, ITE & LED Lighting, 150.5 W, 215 V, 700 mA, Constant Current, 180 VAC
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMEAN WELL
Manufacturer Part NoLPC-150-700
Order Code4206523
Product RangeLPC-150 Series
Your Part Number
Technical Datasheet
3 In Stock
Need more?
3 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY245.860 (CNY277.8218) |
| 5+ | CNY234.440 (CNY264.9172) |
| 10+ | CNY223.780 (CNY252.8714) |
| 50+ | CNY217.700 (CNY246.001) |
| 100+ | CNY213.350 (CNY241.0855) |
Price for:Each
Minimum: 1
Multiple: 1
CNY245.86 (CNY277.82 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMEAN WELL
Manufacturer Part NoLPC-150-700
Order Code4206523
Product RangeLPC-150 Series
Technical Datasheet
Power Supply ApplicationsITE & LED Lighting
Output Power Max150.5W
Output Voltage Max215V
Output Current700mA
LED Driver ModeConstant Current
Input Voltage Min180VAC
Input Voltage Max305VAC
Product RangeLPC-150 Series
SVHCNo SVHC (25-Jun-2025)
Product Overview
LPC-150-700 is a LPC-150 series single output LED switching power supply. Safety standards are BIS IS15885 (for 700mA, 1050mA, 1400mA, 2800mA only), EAC TP TC 004, IP67;IEC 62368-1, BS EN/EN62368-1 approved.
- Constant current design, cooling by free air convection
- Protections: short circuit / overvoltage / overtemperature
- Fully encapsulated with IP67 level, fully isolated plastic case
- Class II power unit, no FG, 100% full load burn-in test
- Suitable for LED related fixture or appliance (such as LED decoration or advertisement)
- Low cost, high reliability, 2 years warranty
- 700mA rated output current, 150.5W rated output power
- 90% typical efficiency, input current rating 180 ~ 305VAC/254VDC ~ 431VDC
- Working temperature rating range from -25 to +50℃
- Dimension ((L x W x H) is 191 x 63 x 37.5mm
Technical Specifications
Power Supply Applications
ITE & LED Lighting
Output Voltage Max
215V
LED Driver Mode
Constant Current
Input Voltage Max
305VAC
SVHC
No SVHC (25-Jun-2025)
Output Power Max
150.5W
Output Current
700mA
Input Voltage Min
180VAC
Product Range
LPC-150 Series
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.74
