AC164150

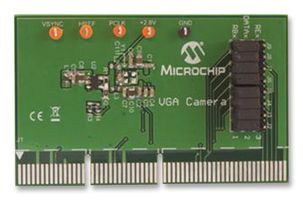

AC164150 is a PIC32 VGA CAMERA SENSOR PICTAIL™ PLUS demonstration board for evaluating Microchip Technology’s basic surveillance and vision solutions using 32-bit microcontrollers. It can capture & process 8bit grey scale or colour images with up to 640x480 resolution. It interfaces to the I/O expansion board (DM320002) with PIC32 starter kits (DM320004 or DM320003-2), Graphics Controller PICTail™ Plus Epson S1D13517 Board (AC164127-7) and Graphics Display Truly 5.7” 640x480 board (AC164127-8). Typical applications include Image capture, processing and connectivity.

• 640x480 VGA Colour CMOS sensor on our standard PICTail™ plus form factor
• Based on the Omnivision OVM7690 CameraCubeChip™
• Convenient test points for video sync and clock sync
• Jumper configurable for display out or image transport over Ethernet

Applications

Embedded Design & Development

Notes

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
