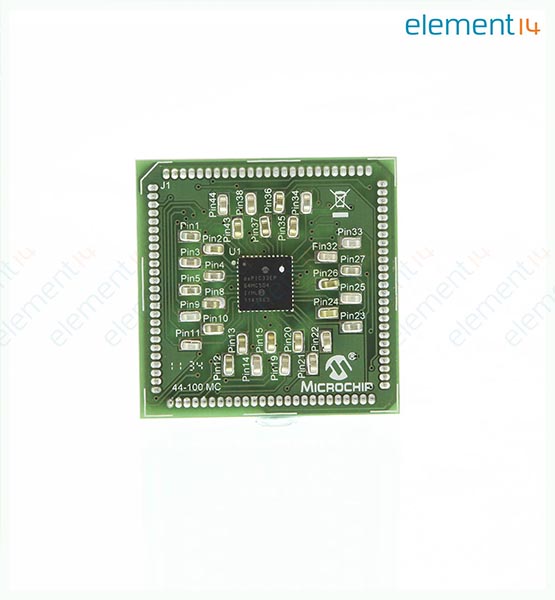

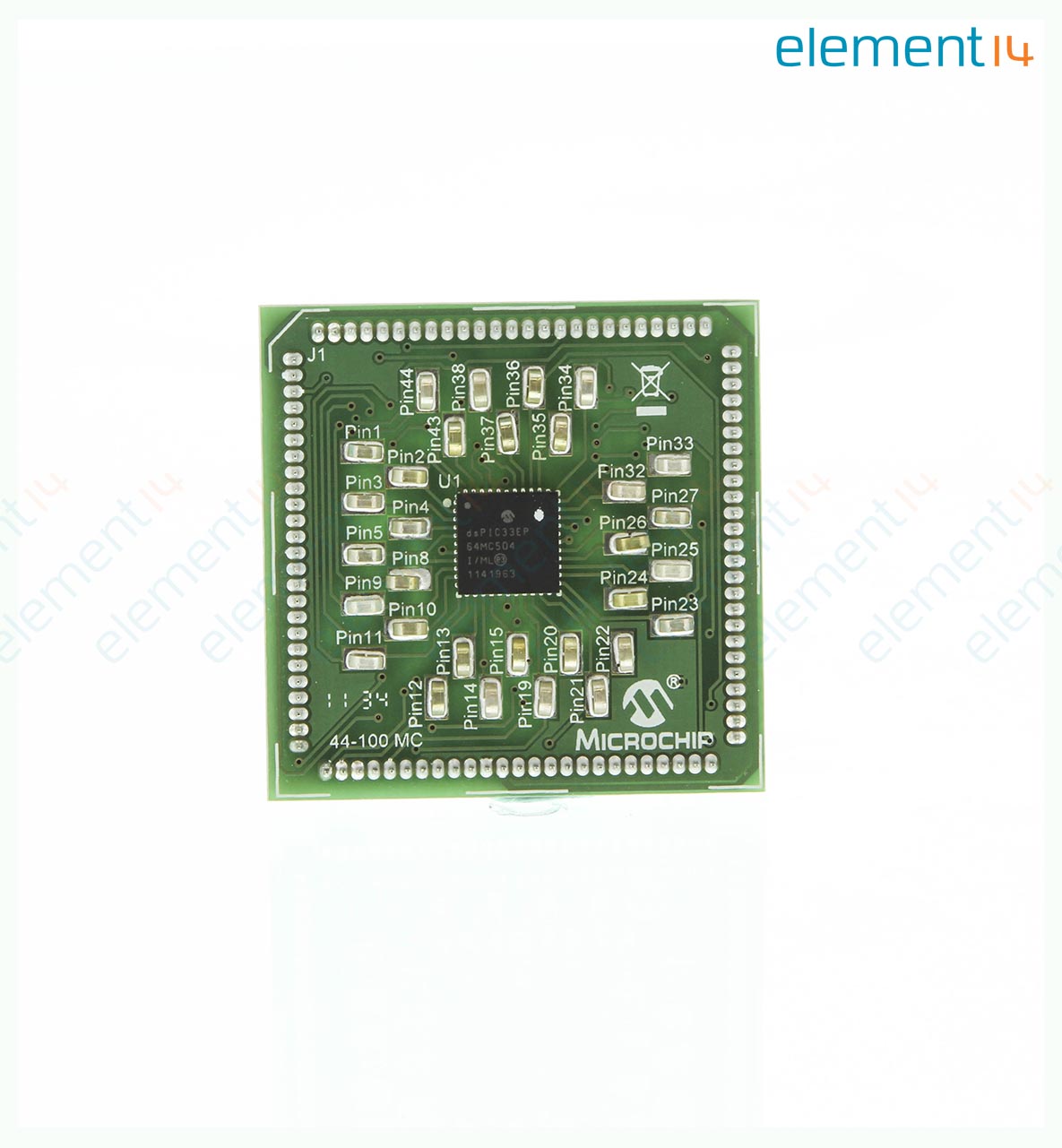

Plug-In Module, dsPIC33EP64MC504 Motor Control Plug In Module


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
  • Enter your custom part number in the textbox above

Part Number Saved

Part Number Saved

Technical Datasheet:
MA330028   Datasheet
Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×






MCLV (DM330021) and MCHV (DM330023) Motor Control Development Boards



Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (2)

Product Overview

The dsPIC33EP64MC504 PIM is designed to demonstrate the capabilities of the dsPIC33EP64MC504 Motor Control devices using external Op amps with development boards such as the dsPICDEM™ MCLV, MCHV, and MCSM which support 100-pin PIM interfaces.
  • Modified Harvard architecture and C compiler optimized instruction set
  • 16bit wide data path, 24bit wide instructions and 16x16 integer multiply operations
  • 32/16 and 16/16 integer divide operations
  • Up to three PWM pairs with independent timing, 7.14ns PWM resolution
  • PWM support for inverters, PFC, Lighting, BLDC, PMSM, ACIM, SRM
  • Two UART modules (15 Mbps), Two 4-wire SPI modules (15 Mbps), Two I2C modules (up to 1 Mbaud)
  • ADC module configurable as 10bit, 1.1Msps with four S&H or 12bit, 500 Ksps with one S&H
  • Up to three op-amp/comparators, op-amp direct connection to the ADC module
  • 12 general purpose timers, Five 16bit and up to two 32bit timers/counters
  • Peripheral trigger generator (PTG) for scheduling complex sequences


Embedded Design & Development, Industrial, Automotive, Communications & Networking, Motor Drive & Control, Sensing & Instrumentation, Audio, Building Automation


90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
