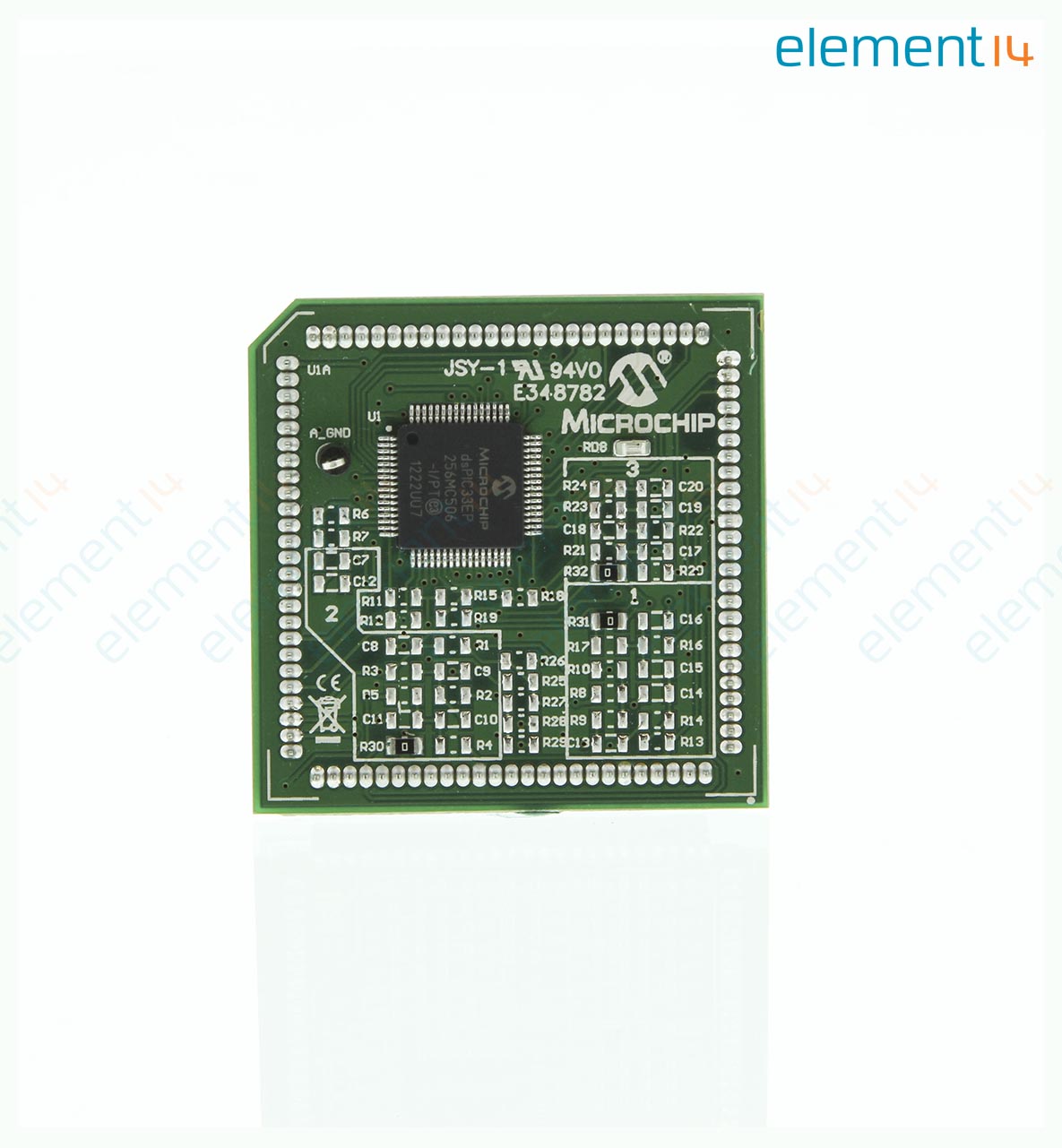

Daughter Board, dsPIC33EP256MC506 Plug In Module, Motor Control, External OpAmp


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
  • Enter your custom part number in the textbox above

Part Number Saved

Part Number Saved

Technical Datasheet:
MA330031-2   Datasheet
Supply Frame Models Link
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×






dsPICDEM MCLV-2 Development Boards

Plug In Module for dsPICDEM MCLV-2 Development Board


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

Product Overview

MA330031-2 is a external op amp motor control plug in module (PIM). This PIM is designed to demonstrate the capabilities of the dsPIC33EP256MC506 motor control device, using external on board op amps with development boards, such as the dsPICDEM MCLV-2 development board (DM330021-2) and the dsPICDEM MCHV-2 development board(DM330023-2), which support 100 pin PIM interfaces. The dsPIC33EP256MC506 is a high performance, 16bit digital signal controller (DSC) in a 64 pin TQFP package. To operate this PIM with the dsPICDEM MCLV-2 and dsPICDEM MCHV-2 development boards, please insert the external op amp configuration board into the header, J4, (for the dsPICDEM MCHV-2 development board) or header, J14 (for the dsPICDEM MCLV-2 development board). This PIM can be used to evaluate the dsPIC33EPxxxMC50x, dsPIC33EPxxxMC20x, and PIC24EPxxxMC20x devices.
  • Peripheral trigger generator (PTG) for scheduling complex sequences
  • Modified Harvard architecture
  • Two 40bit accumulators with rounding and saturation options
  • Single cycle shifts for up to 40bit data
  • Single cycle multiply and accumulate
  • 24bit wide instructions
  • 16x16 fractional multiply/divide operations
  • Up to three PWM pairs with independent timing
  • Programmable fault inputs
  • Flexible trigger configurations for ADC conversions


Motor Drive & Control


90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.


Do not connect non isolated oscilloscope probes to this PIM while using it with dsPICDEM MCHV-2. Use a high voltage differential probe. Failure to heed this warning could result in hardware damage.
