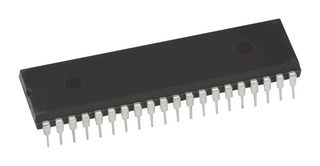

PIC18F45K80-I/P

The PIC18F45K80-I/P is a baseline PIC18 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product utilize a 12-bit program word and provide the right amount of features including 32kB of addressable program memory size, 3648bytes of data memory size, 35 general-purpose I/O pins, two comparators and 11-channel 12-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 64MHz wide operating voltage of 1.8 to 5.5V.

• Simple 33 (12-bit wide) instruction set
• 2 level hardware stack
• 1 (8-bit) file select register
• Smallest form factor
• Programmable brown-out reset (BOR)
• Programmable low voltage detection
• 32kHz to 16MHz internal oscillator
• Watch dog timer (WDT)
• Charge time measurement unit (CTMU)
• Two 8-bit digital timers
• Three 16-bit digital timers
• 4x Capture/Compare/PWM (CCP)
• 1x Enhanced Capture/Compare/PWM (ECCP)
• Controller area network (CAN)
• 8x Capacitive touch channels
• In-Circuit Serial Programming™ (ICSP™)
• 1024bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security
