MDOG128032A1V-YI
Graphic OLED, 128 x 32 Pixels, Yellow on Black, 3V, I2C, 30mm x 11.5mm, -40 °C

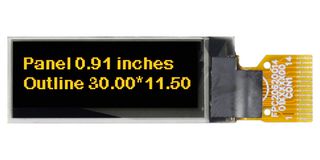

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOG128032A1V-YI
Order Code3759036
Product RangeMDOG128032A1
Technical Datasheet
21 In Stock
Need more?
21 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY77.260 (CNY87.3038) |
| 5+ | CNY61.380 (CNY69.3594) |
| 10+ | CNY57.080 (CNY64.5004) |
| 50+ | CNY53.550 (CNY60.5115) |
| 100+ | CNY49.820 (CNY56.2966) |
| 250+ | CNY46.410 (CNY52.4433) |
Price for:Each
Minimum: 1
Multiple: 1
CNY77.26 (CNY87.30 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMDOG128032A1V-YI
Order Code3759036
Product RangeMDOG128032A1
Technical Datasheet
Resolution128 x 32 Pixels
Display AppearanceYellow on Black
Logic Voltage3V
Interface TypeI2C
Module Size30mm x 11.5mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionCOG
Product RangeMDOG128032A1
SVHCNo SVHC (27-Jun-2024)
Product Overview
- Module dimension: 30.0× 11.5 × 1.26 mm
- Active area: 22.384 × 5.584 mm
- Dot Matrix: 128x32
- Pixel size: 0.152 × 0.152 mm
- Pixel pitch: 0.175 × 0.175 mm
- Display Mode：Passive Matrix
- 1/32 Duty
- Display Colour: Yellow
- IC: SSD1306
- Interface:I2C
- Size: 0.91"
Technical Specifications
Resolution
128 x 32 Pixels
Logic Voltage
3V
Module Size
30mm x 11.5mm
Operating Temperature Max
80°C
Product Range
MDOG128032A1
Display Appearance
Yellow on Black
Interface Type
I2C
Operating Temperature Min
-40°C
Display Construction
COG
SVHC
No SVHC (27-Jun-2024)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005
