0871-0-15-20-82-14-11-0

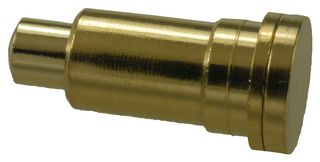

Contact, Spring Loaded Pin, Flat, 9 A, 10.16 mm, 25 g
Image is for illustrative purposes only. Please refer to product description.
9 In Stock
125 more incoming. You can reserve stock now
9 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY24.200 (CNY27.346) |
| 10+ | CNY20.700 (CNY23.391) |
| 100+ | CNY17.740 (CNY20.0462) |
| 250+ | CNY16.690 (CNY18.8597) |
| 500+ | CNY15.940 (CNY18.0122) |
| 1000+ | CNY14.750 (CNY16.6675) |
Price for:Each
Minimum: 1
Multiple: 1
CNY24.20 (CNY27.35 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMILL-MAX
Manufacturer Part No0871-0-15-20-82-14-11-0
Order Code2751177
Technical Datasheet
SVHCTo Be Advised
Product Overview
The 0871-0-15-20-82-14-11-0 from Mill Max is a discrete power spring loaded pin contacts. It provides a reliable electrical connection in the most rigorous environments. It features a 0.045" (1.14mm) mid-stroke and 0.090" (2.29mm) maximum stroke, endurance of 1,000,000cycles and a rated current of 9A at 10°C temperature rise. Applications include board stacking, docking stations, cable assemblies, quick connects and anywhere there is a blind mate situation.
- Long stroke, surface mount
- Force at mid stroke is 100g
- Initial force (pre-load) is 25g
- Copper alloy with gold finish sleeve & plunger material
- Gold plated stainless steel spring
- Maximum contact resistance is 20mohm
- Operating temperature range from -55°C to +125°C
Technical Specifications
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000629
