0985-0-15-20-71-14-11-0 .
Contact, Spring Loaded Pin, Point, 2 A, 0.35 ", 15 g

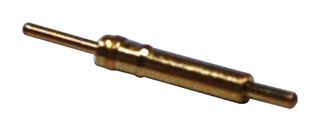

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMILL-MAX
Manufacturer Part No0985-0-15-20-71-14-11-0 .
Order Code2840843
Technical Datasheet
546 In Stock
Need more?
15 Delivery in 3-4 Business Days(Shanghai stock)
531 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 10+ | CNY6.110 (CNY6.9043) |
| 50+ | CNY5.480 (CNY6.1924) |
| 100+ | CNY5.230 (CNY5.9099) |
| 250+ | CNY4.920 (CNY5.5596) |
| 500+ | CNY4.700 (CNY5.311) |
| 1500+ | CNY4.550 (CNY5.1415) |
Price for:Each
Minimum: 10
Multiple: 10
CNY61.10 (CNY69.04 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMILL-MAX
Manufacturer Part No0985-0-15-20-71-14-11-0 .
Order Code2840843
Technical Datasheet
Product Overview
The 0985-0-15-20-71-14-11-0 from Mill Max is a spring loaded pin. It has brass alloy shell with 20μ" gold over nickel plating and stainless steel 302 spring with 10μ" gold over nickel plating.
- Standard stroke, solder mountable in 0.019inch minimum mounting hole
- Pin length is 0.103inch
- 0.0275inch mid stroke, 0.055inch max stroke
- 60g force at mid stroke, 15g initial force (pre-load)
- Current rating is 2A continuous, 3A peak
- Maximum contact resistance is 20mohm
- Operating temperature range from -55°C to +125°C (discontinuous)
- 100,000 cycles durability
- Shock and vibration resistant
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000034
