63811-6300

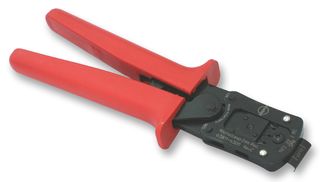

Crimp Tool, Ratchet, Molex MicroClasp 56134 Series 26-22AWG Socket Contacts
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMOLEX
Manufacturer Part No63811-6300
Order Code1716071
Product RangePremiumGrade 207129 Series
Also Known AsGTIN UPC EAN: 822350856331
Technical Datasheet
No Longer Manufactured
Product Information
ManufacturerMOLEX
Manufacturer Part No63811-6300
Order Code1716071
Product RangePremiumGrade 207129 Series
Also Known AsGTIN UPC EAN: 822350856331
Technical Datasheet
Crimp Tool TypeRatchet
For Use WithMolex MicroClasp 56134 Series 26-22AWG Socket Contacts
Product RangePremiumGrade 207129 Series
SVHCNo SVHC (27-Jun-2018)
Product Overview
- A full cycle ratcheting hand tool ensures complete crimps
- Ergonomically designed soft handles
- Precisely designed crimping profiles with simple contact positioning
- Easy handling due to outstanding force ratio
- A-620 Class 3 compliant
- Removable crimp head can be use in the air powered tool 63816-0100, with crimp adapter 63816-0700
- Can use in battery powered tool 63816-0200 110V or 63816-0250 220V, with crimp adapter 63816-0600
- For MicroClasp™ 2.00mm (.079") pitch female crimp terminal, 22-26AWG
Applications
Industrial
Technical Specifications
Crimp Tool Type
Ratchet
Product Range
PremiumGrade 207129 Series
For Use With
Molex MicroClasp 56134 Series 26-22AWG Socket Contacts
SVHC
No SVHC (27-Jun-2018)
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
Tariff No:82032000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Not applicable
RoHS Phthalates Compliant:Not applicable
SVHC:No SVHC (27-Jun-2018)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.429
