87782-2001
Memory Card Connector, Mini DIMM, Latched, 244 Contacts, Copper Alloy, Gold Plated Contacts
56 In Stock
Need more?
56 Delivery in 5-6 Business Days(UK stock)
| Quantity | Price (inc GST) |
|---|---|
| 1+ | CNY127.460 (CNY144.0298) |
| 10+ | CNY112.610 (CNY127.2493) |
| 25+ | CNY111.790 (CNY126.3227) |
| 100+ | CNY111.560 (CNY126.0628) |
| 250+ | CNY109.330 (CNY123.5429) |
| 500+ | CNY107.900 (CNY121.927) |
Price for:Each
Minimum: 1
Multiple: 1
CNY127.46 (CNY144.03 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMOLEX
Manufacturer Part No87782-2001
Order Code3226188
Product Range87782
Also Known AsGTIN UPC EAN: 822348683871
Technical Datasheet
Memory / Card TypeMini DIMM
Insert & Eject MechanismLatched
No. of Contacts244Contacts
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Product Range87782
SVHCNo SVHC (25-Jun-2025)
Product Overview

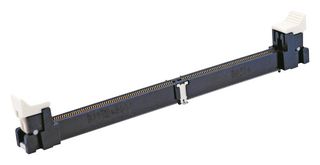

87782-2001 is an 87782 series, 0.60mm pitch miniDIMM DDR2, socket. Mates with JEDEC MO-244 modules.
- 1A current maximum per contact
- 1.8V voltage key and 30V (RMS) maximum voltage
- 244 loaded circuits and 244 maximum circuits
- Vertical (top entry)
- Durability (mating cycles max) is 24
- Copper alloy metal with gold plating mating
- Black high temperature thermoplastic resin
- Features keying to mating part, PCB locator, PCB retention
- Surface mount termination interface style
- Operating temperature range from -55° to +85°C
Technical Specifications
Memory / Card Type
Mini DIMM
No. of Contacts
244Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (25-Jun-2025)
Insert & Eject Mechanism
Latched
Contact Material
Copper Alloy
Product Range
87782
Alternatives for 87782-2001
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Singapore
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Singapore
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.005216
